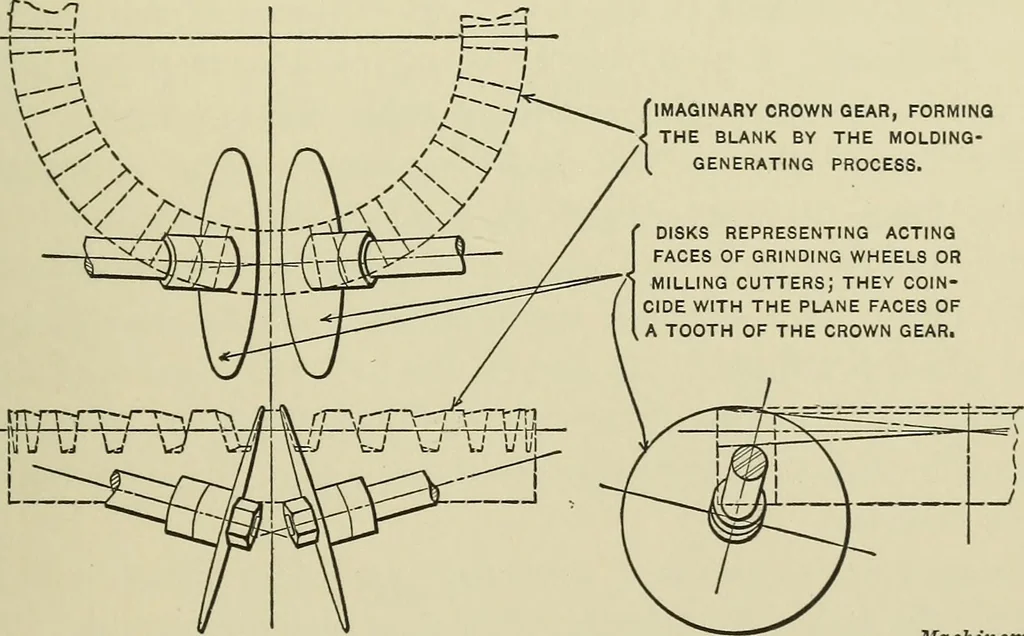

eration is fully as great in bevel gears as in spurgears, and the machines in which they are incorporated applythese principles and methods in an even more ingenious fashion. Machines for Cutting the Teeth of Bevel Gears by the FormedTool Process. — A very common method of using the formedtool for… … IMAGINARY CROWN GEAR, FORMINGTHE BLANK BY THE MOLDING-GENERATING PROCESS. DISKS REPRESENTING ACTINGFACES OF GRINDING WHEELS ORMILLING cutters; THEY COIN-CIDE WITH THE PLANE FACES OF{A TOOTH OF THE CROWN GEAR. Machinery Fig. 9. Diagram suggesting Arrangement of Milling Cutters or GrindingWheels for…
