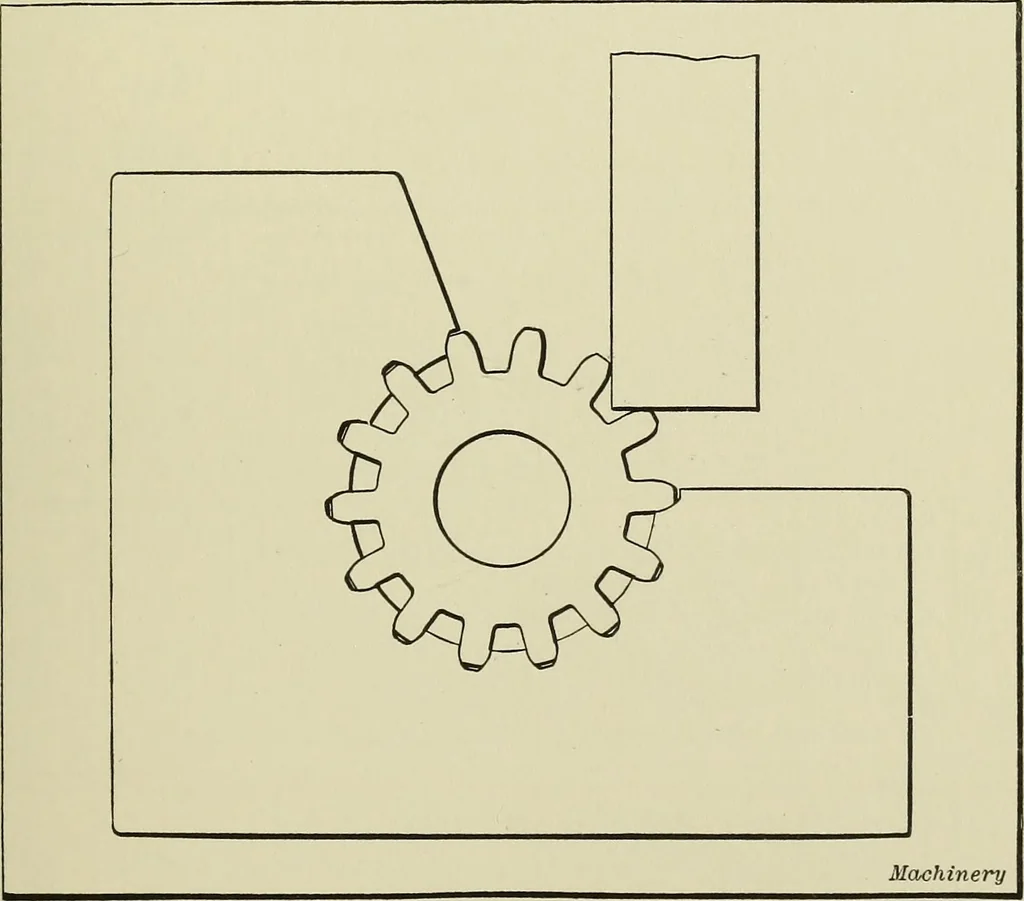

rmine the value Y in the Lewis formula,draw the lines BC and CE. the latter being at right angles toBC and intersecting the center line of the tooth at £. In thef olloTsing formulas: 5 = the nber stress;.4 = the width of the face of the gear;P = circular pitch of gear; L. M. T and IT denote… … Fig. 2. Method of applying Load to Tooth for Testing Strength Tests for Strength of Gear Teeth. — In a paper read beforethe National Machine Tool Builders Association, October, 1913,Mr. A. C. Gleason gave some information relating to tests of thestrength of heat-treated gears. The accompanying…
