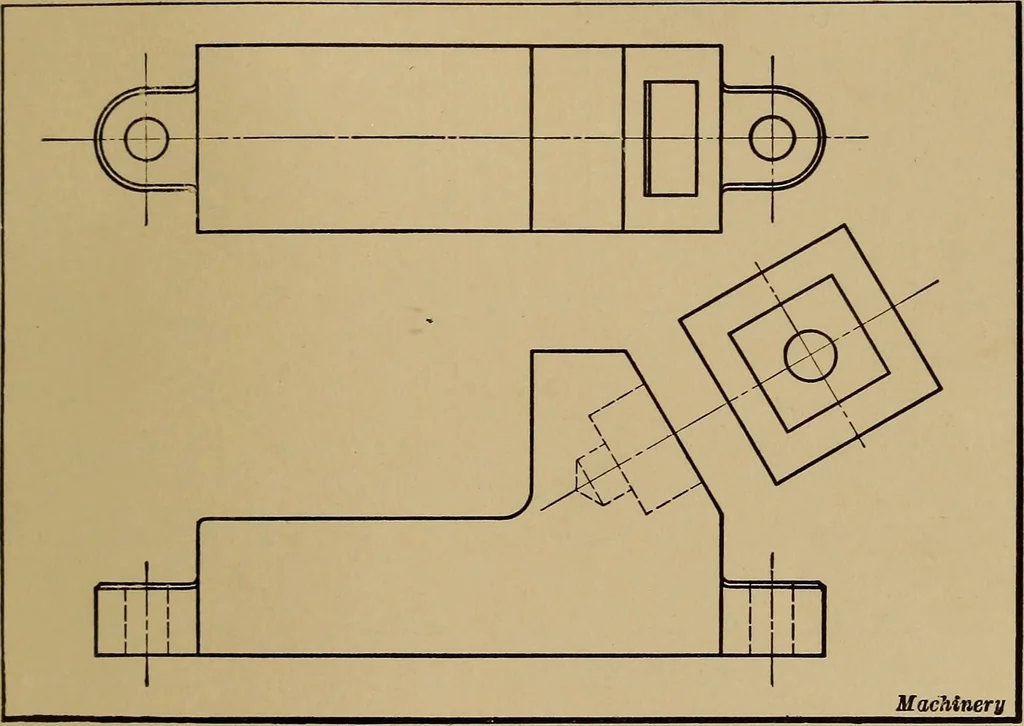

ting or forging which has inclined surfaces or PROJECTION 25 parts that would not be shown in their true proportions byviews of the kind previously referred to; hence, it is neces-sary, in many cases, to draw auxiliary views which show theinclined part just as though it were projected upon a… … Fig. 12. Illustrating Use of Auxiliary View of Inclined Surfaces The plan view does not show this inclined part clearly norin its true proportions, because the inclined edges, as seenin the plan view, are foreshortened or less than their actuallength; but by drawing an auxiliary view, as shown,…
