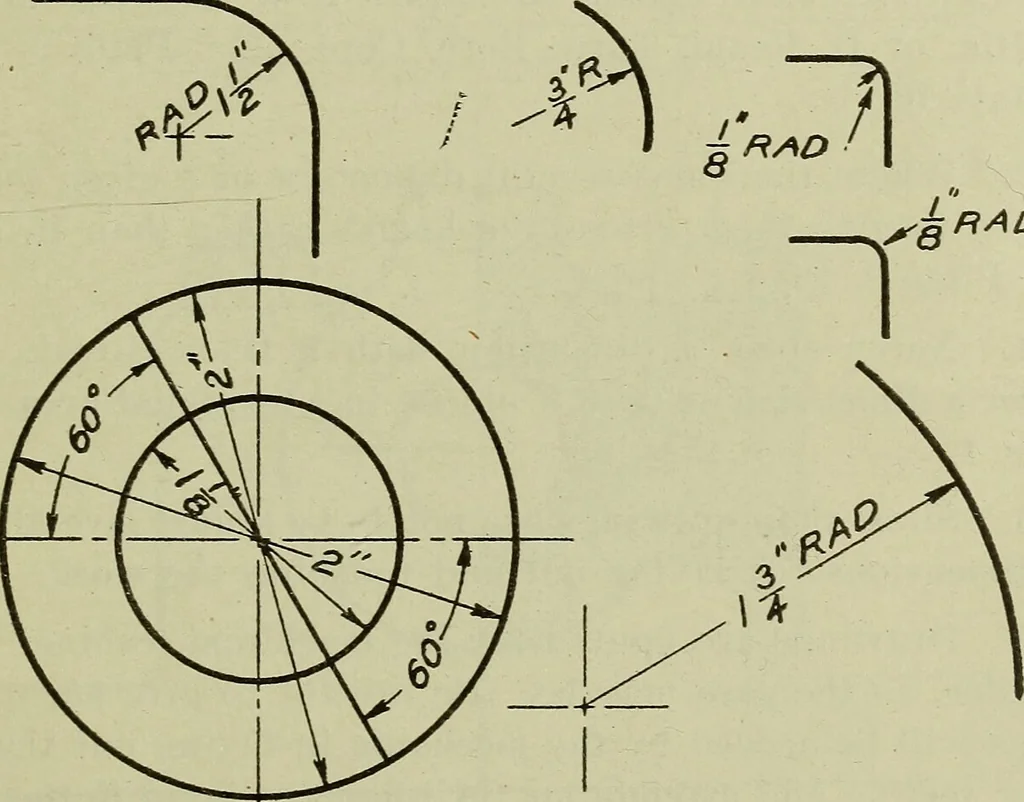

RAD … REVERSE r/GURE^ AT 60 PLATE 1023 44, Keep dimensions off the figure except where there is apossibility of confusing the workmen. Plate 8, Fig. 2. . 45. Keep related dimensions, i. e., a length and width, onthe same view if possible. 46. Dimensions of a detail given in one view must not berepeated…
