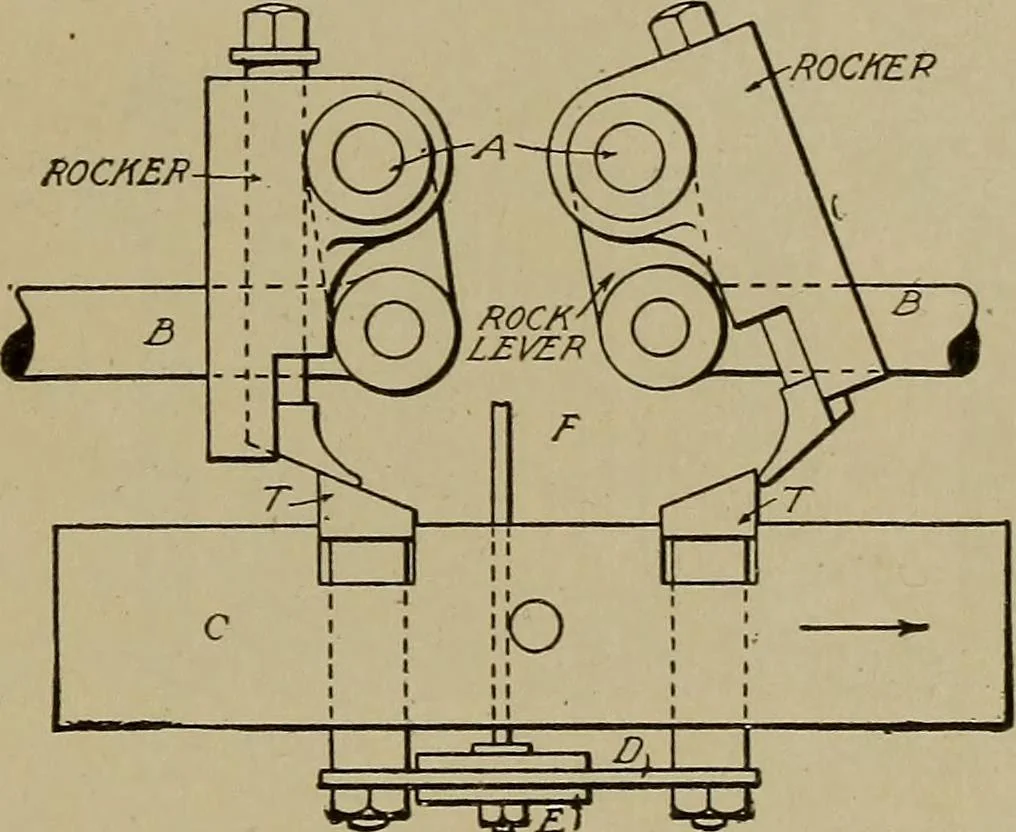

the tappets, cut-off will belater. A nut at the bottom of the governor rod allows a properadjustment of the guide and guage plate. As the slide bar C movestoward the right, the left-hand tappet comes in contact with the heelof the left-hand rocker and, both being beveled, the toe of the rockerrises… … qpzr Fig. 82. Greene Drop Cut-Off Gear 92 VALVE GEARS no load whatever on the governor, a distinct advantage over theCorliss gear. The action of the exhaust valves is not shown in the cut.Sulzer Gear. The Sulzer gear is a drop cut-off widely used inEurope. The valves are of the poppet type, lifting…
