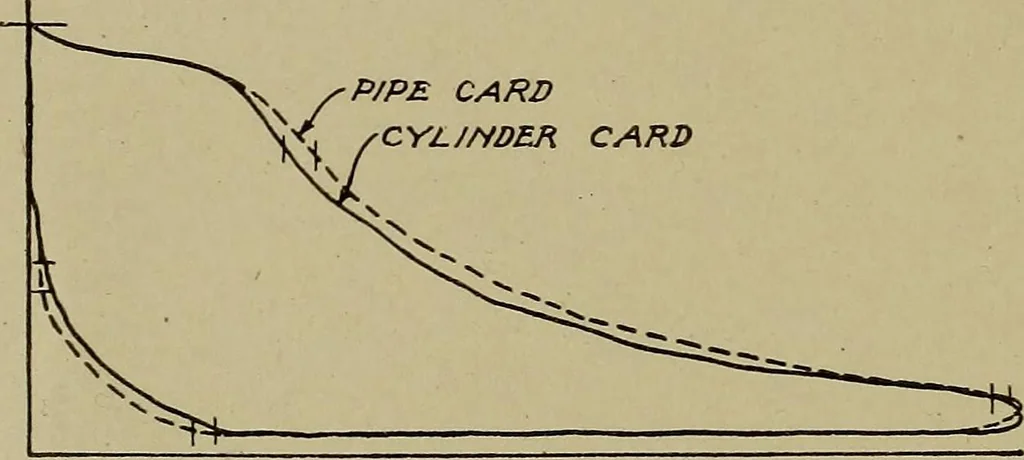

Fig. 13. Method of Attaching Indicator Piping to Engine Cylinder nary pressures and speeds, a length of pipe over 3 feet in length ?odistorts the card that the results obtained are useless except forapproximate work. ■P/P£ CARD<CYJ-/NDER CARD … Fig. 14. Indicator Card Showing Effect ofChanging Connecting Pipe In order to determine the effect of long pipe connections betweenthe indicator and engine, upon the form of the cards, a series of tests -P/PE CARD >CYA./HDER CARD
