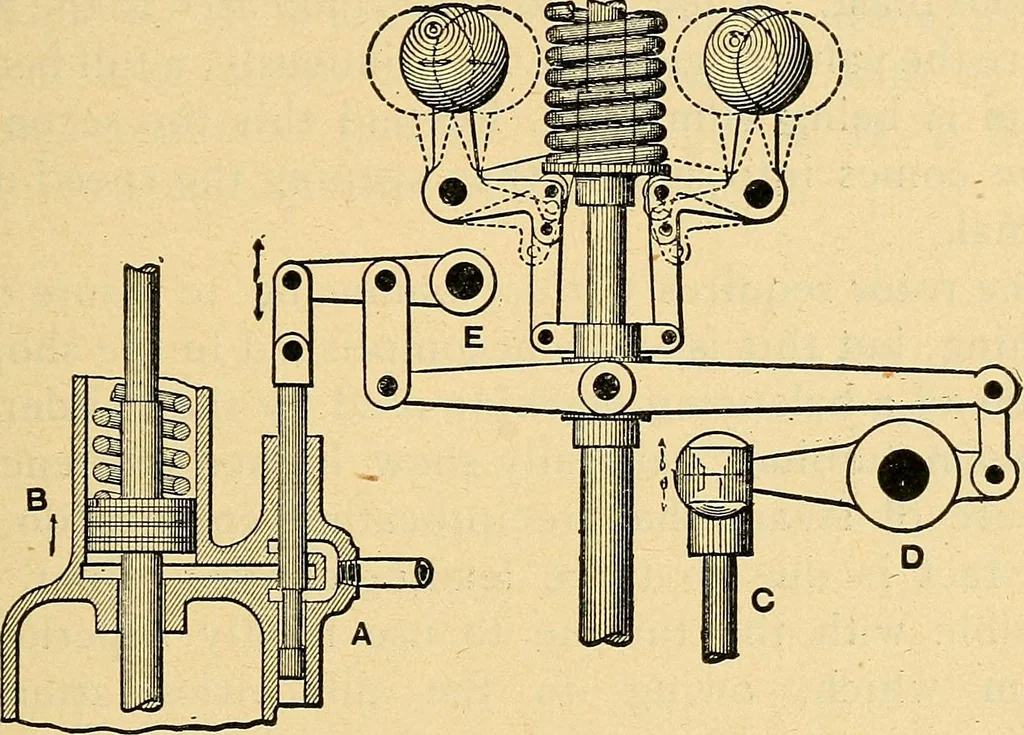

in the supply ofsteam. Fig. 133 is a diagram of the governor THE WESTINGHOUSE-PARSONS STEAM TURBINE 367 mechanism. The ball levers swing on knife edgesinstead of pins. The governor works both ways, thatis to say, when the levers are oscillating about theirmid position a head of steam corresponding… … FIGURE 133. nected to the admission valve. Steam is admitted tothis piston under control of the pilot valve A, whichhas a slight but continuous reciprocating motionderived from the eccentric rod C, and the function ofthe governor is-to vary the plane of oscillation of thisvalve, thus causing it to…
