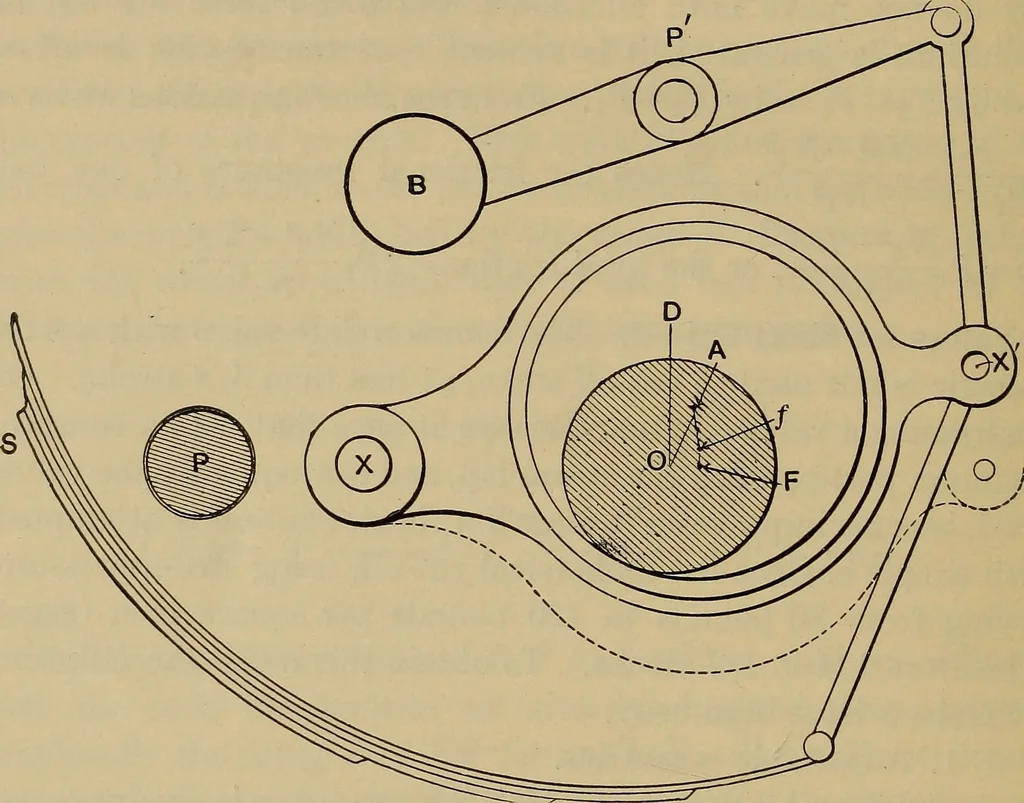

the arms of a 340 THE STEAM-ENGINE AND OTHER HEAT-MOTORS. fly-wheel which is keyed to the shaft. Any rotation of the shaftwill then cause exactly the same movement of the center of theeccentric as would have been caused if the eccentric had beenfastened directly to the shaft. It will be seen,… … Fig. 176. eccentric, leaving the rim to be encircled by the eccentric-strap asusual. The fly-wheel is supposed to be in front of the eccentric,and is omitted to avoid confusing the diagram. The eccentric,reduced to a ring-like form, fits the shaft so loosely that it mayreadily be swung around X as…
