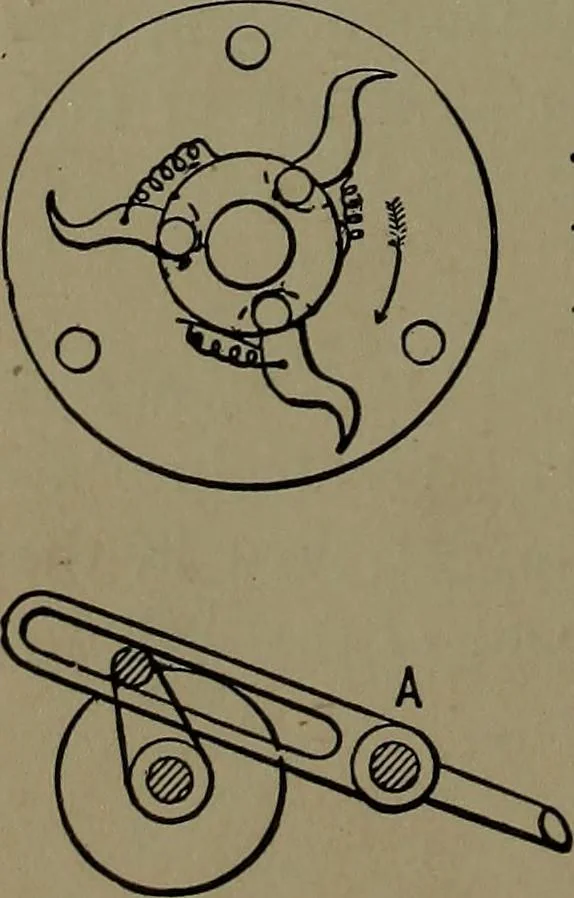

■^ 1025. STOPS for a lantern wheel. One alatch stop, the other a roller stop. … 1026. SAFETY CENTRIFUGAL HOOKS.—Hooks are retained by springs until the cen-trifugal force of excessive speed throws them outto catch the pins in the fixed plate. 1027. CRANK MOTION for quick return ola lever. A, fulcrum of lever. MOTION AND DEVICES CONTROLLING MOTION. 259
