Creighton, William Henry Paul, 1859- · New York, J. Wiley & sons; [etc., etc.] · leaf 481

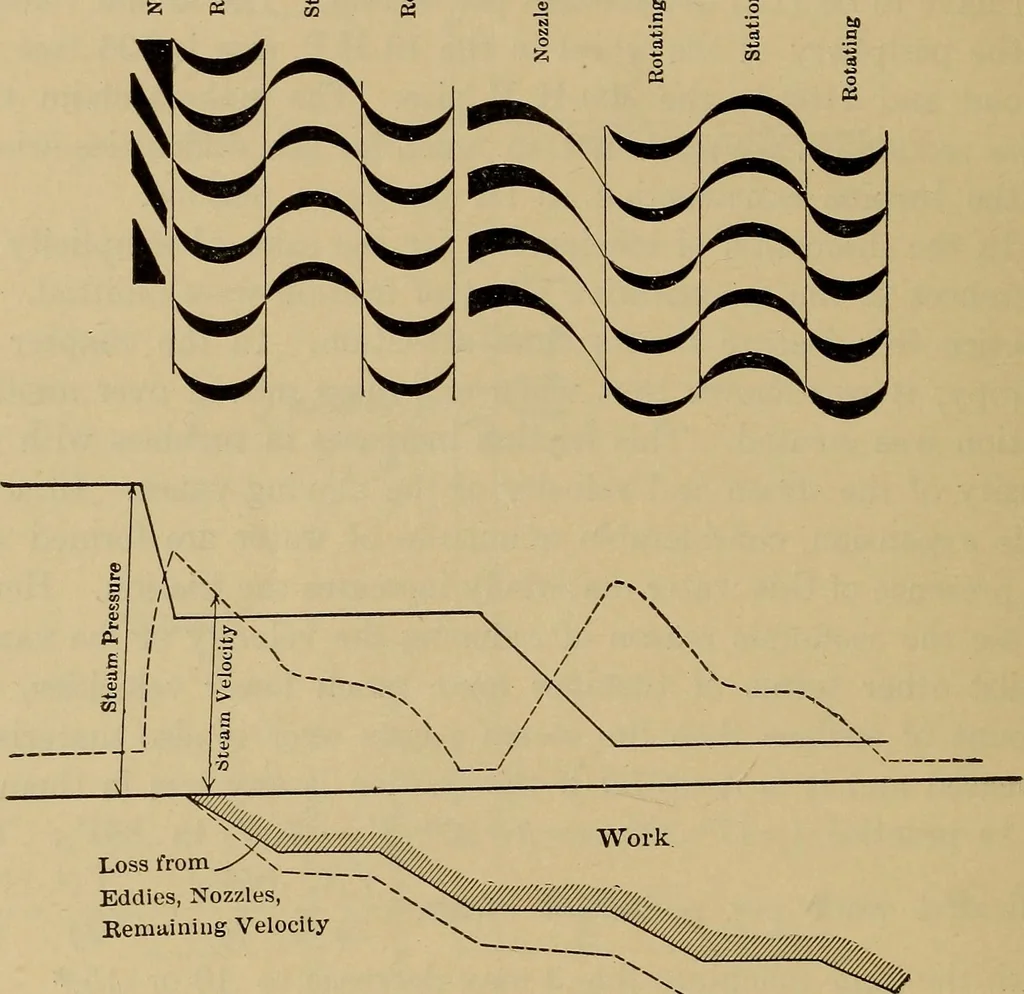

r that its velocity may be partially utilized in the next * .Stodola. 460 THE STEAM-ENGINE AND OTHER HEAT-MOTORS. rotating wheel. The diagrammatic sketch, Fig. 240, shows the lossof pressure and the gain in velocity of the steam in two sets ofnozzles. In its flow through each set of stationary and… … Loss from ^/ NEddies, Nozzles,Remaining Velocity Fig. 240—Diagrammatic Sketch ot Curtis Turbine. moving wheels, the dotted line showing the limits of the theoreticalwork. In the De Laval turbine it is necessary to make V2 as small aspossible, as it represents waste velocity. We have seen that…
Steam-engines · Heat-engines
