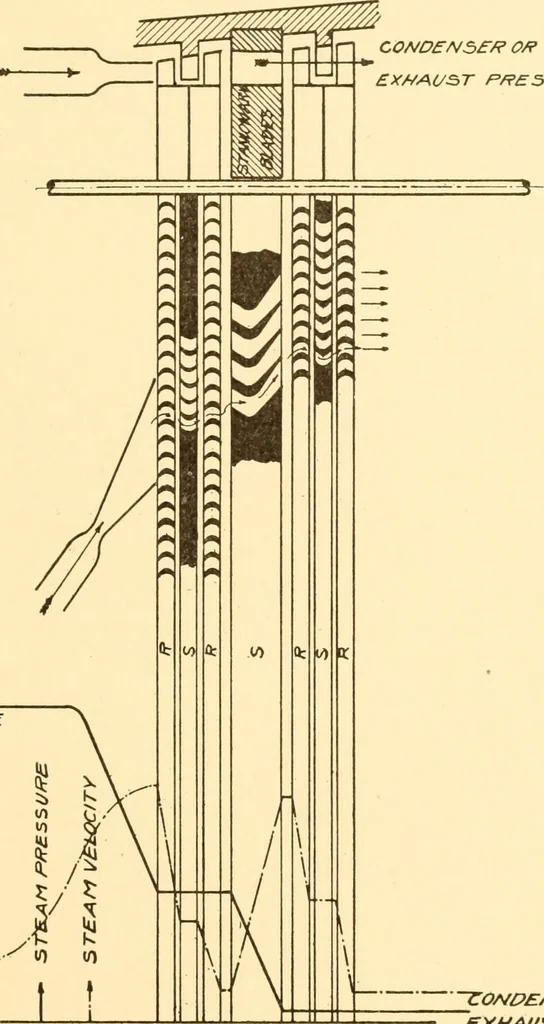

the decrease of the pressure from boilerpressure to a medium pressure in the first nozzles, the steam STEAM TURBINES 283 pressure remaining the same in the whole first part of the turbineno further expansion taking place in it. After having left the last running wheel of the first part ofthe… … BO/L£fl PRESSURE ~ZOA/PEA/SEf? OR~£XHAUBT RRESSUKE^ Fig. 171. steam jet impinges the first running wheel of the second partof the turbine, makes one fraction of its velocity available in it,leaves the wheel with a certain velocity, is led with this velocitythrough the following stationary vanes and…
