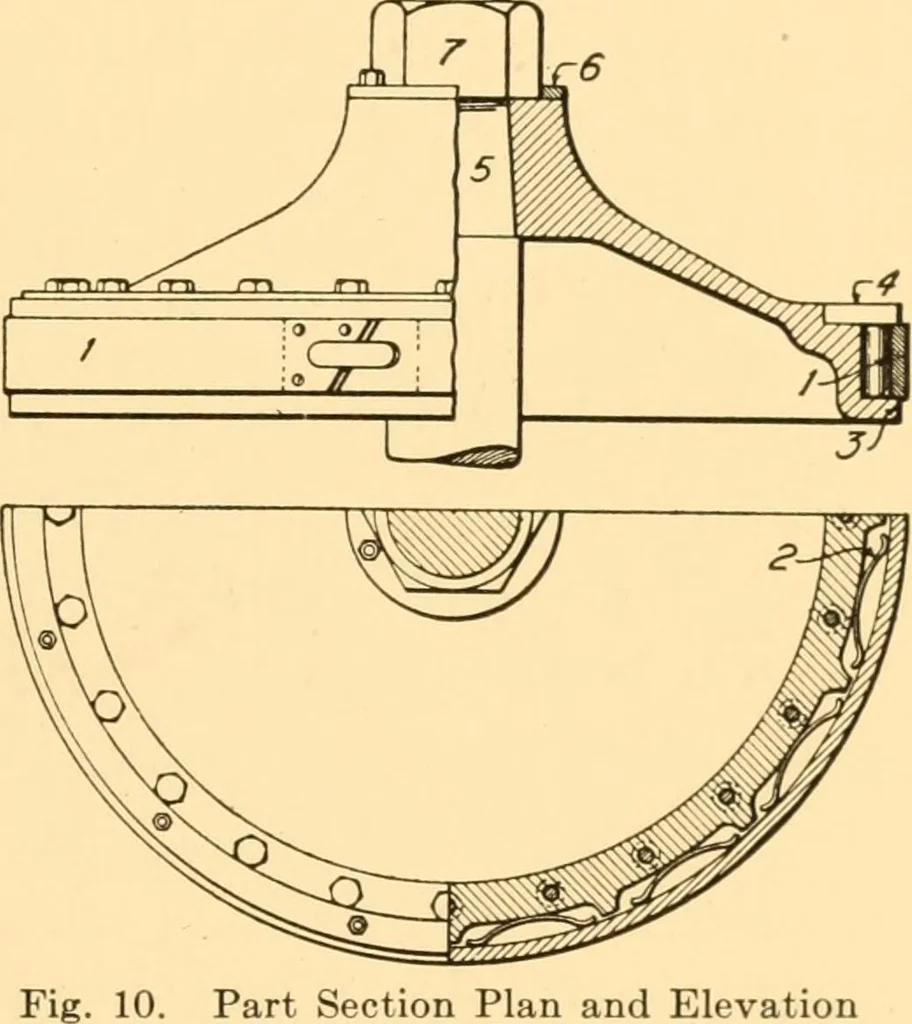

is largely used in marine and some-times locomotive service is illustrated in Fig. 10. This is a com-paratively light cast steel piston, but at the same time a very strongone, due to its conical construction. It will be noted also that onlythe one packing ring 1 is used. This packing ring is much… … Part Section Plan and Elevationof Conical Piston 14 STEAM ENGINES piston is made with an L-shaped edge 3, a band 4 being bolted on theopen side of the L, thus forming a groove or opening for the recep-tion of the small springs and the packing ring. The connection ofthe piston rod to the piston is…
