Analytical mechanics for students of physics and engineering (1913)
Dadourian, Haroutune Mugurditch. [from old catalog] · New York, D. Van Nostrand company · leaf 61

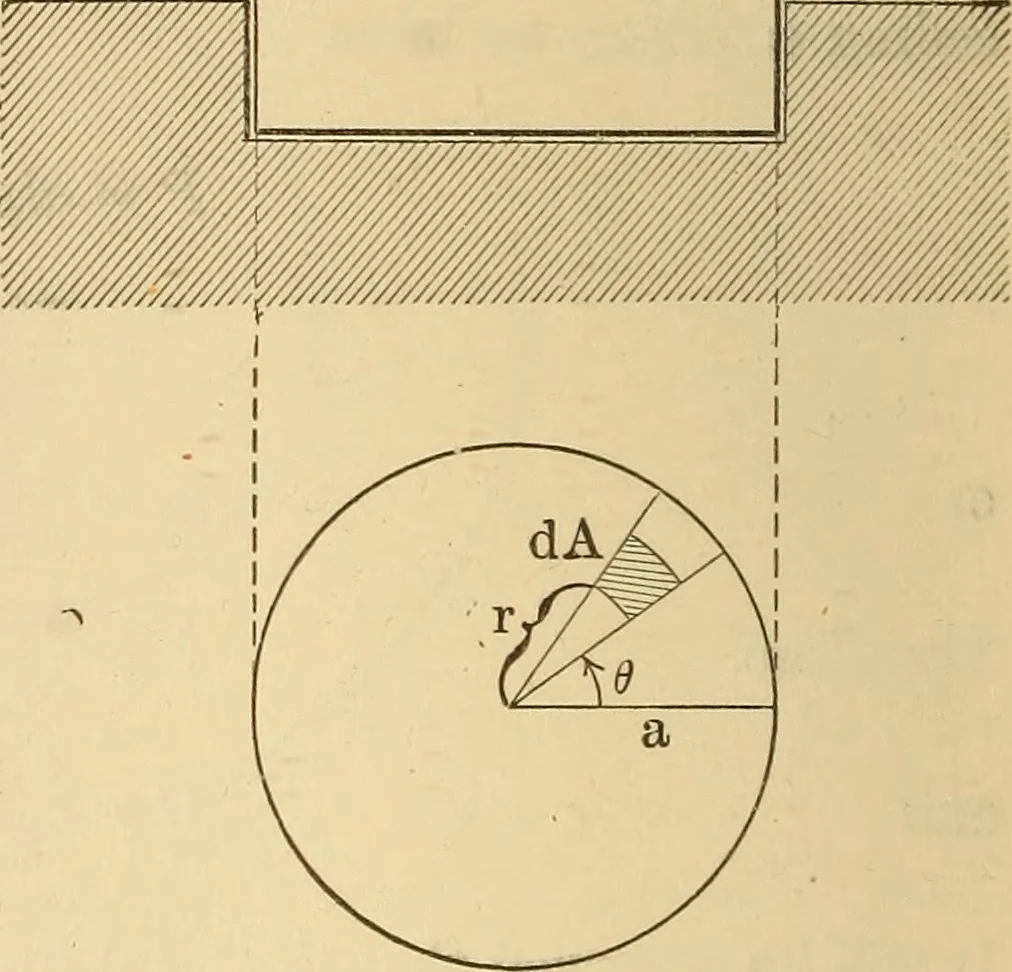

which distinguishes the pivot from the journal bearing is this: in the former the lever arm of the frictional force varies from point to point, while in the latter it is constant and equals the radius of the shaft. Let dN be the normalreaction upon dA, an ele-ment of area at the base ofthe flat-end… … = -Kal[ip. Fig. 39. The expression for the resisting torque due to the frictionis obtained as follows: G -£ Jo Jo r-dF fxpdA r»p = it tip j r2 dr= lira? up= I «mP,where P is the total load on the pivot. -dr EQUILIBRIUM OF RIGID BODIES 55 PROBLEMS. 1. Derive an expression for the resisting torque…
