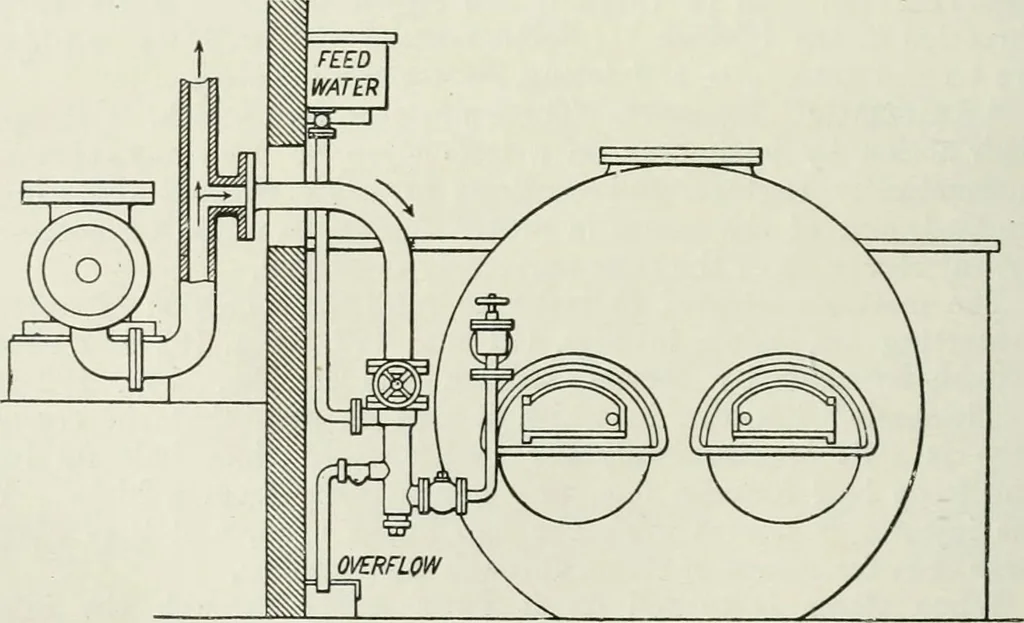

Fia. 192. shell of the injector instead of in the nozzle. The Exhaust Injector is similar in principle to an ordinary injector,and differs from it chiefly in having a steam-nozzle of very wide bore. … Fig. 193. The feed-water supply to the exhaust injector must be arranged tojiow into the injector. Fig. 193 shows the attachment of the exhaust injector to a boiler. CHAPTER XII. CONDENSERS. The cojidenser is a chamber into which the steam is passed and con-densed instead of being exhausted into…
