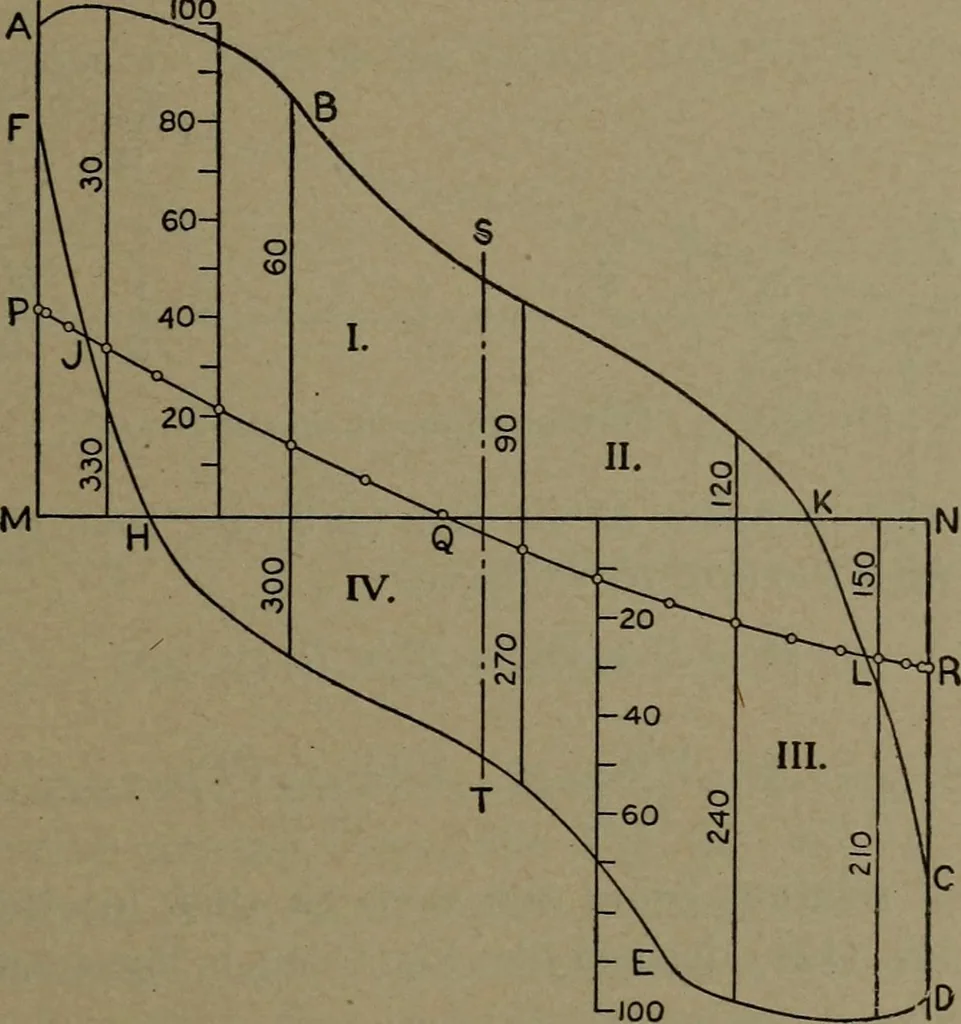

13 being, of course, above the shaft. In Figs. 170 III and 172, this caneasily be taken into account by a simple shifting of the base line MN(and with it the inertia curve) through a distance equal to W/A. It is apparent that the inertia-force action of these moving massestends to equalize the… … Fig. 172. — The Two-stroke Diagram. (d) Turning-force Relations. — Two methods of reasoning maybe followed in finding, for a known driving force at the wrist pin, theturning effect upon the crank: both are under the assumption that theconnecting rod is a weightless transmitting link, its inertia…
