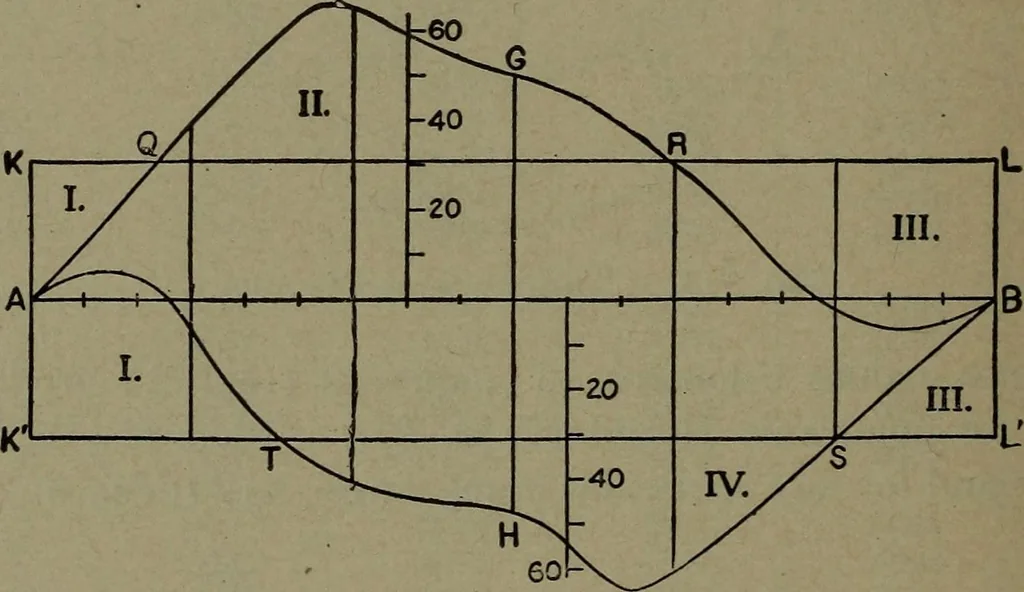

torque, andeither that there are no frictional losses or that their effect is includedin the load, we get the value of the equivalent resistance at the crankcircle by finding the mean tangential force through Eq. (150). Measur-ing off this Tm at AK, we draw the resistance circle KL on Fig. 175:and… … Fig. 177. — Diagram on Developed Circle. driving force just equal to the resistance: during two periods or phases,marked I and III, the work done upon the shaft is less than thattaken from it, and the deficiency is supplied by energy from the wheel,which of course slows down; but during phases II…
