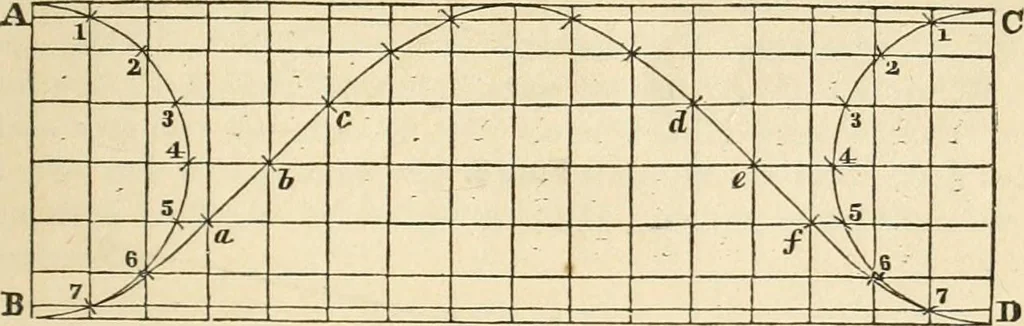

arcs NO and NJ, having the points of contact at S andS ; on this tangent line erect a perpendicular passing through thepoint N produced until it intersects the line BE produced ; then placeone foot of the dividers on the point of intersection R and span themover the dotted line to the point T, and… … Mark out the length and depth of the elbow, ABCD ; draw a semi-circle at each end, as from AB and CD ; divide each semicircleinto eight parts ; draw horizontal lines as shown from 1 to 1, 2to 2, &c. ; divide the circumference or length, ACBD, into sixteenequal parts, and draw perpendicular…
