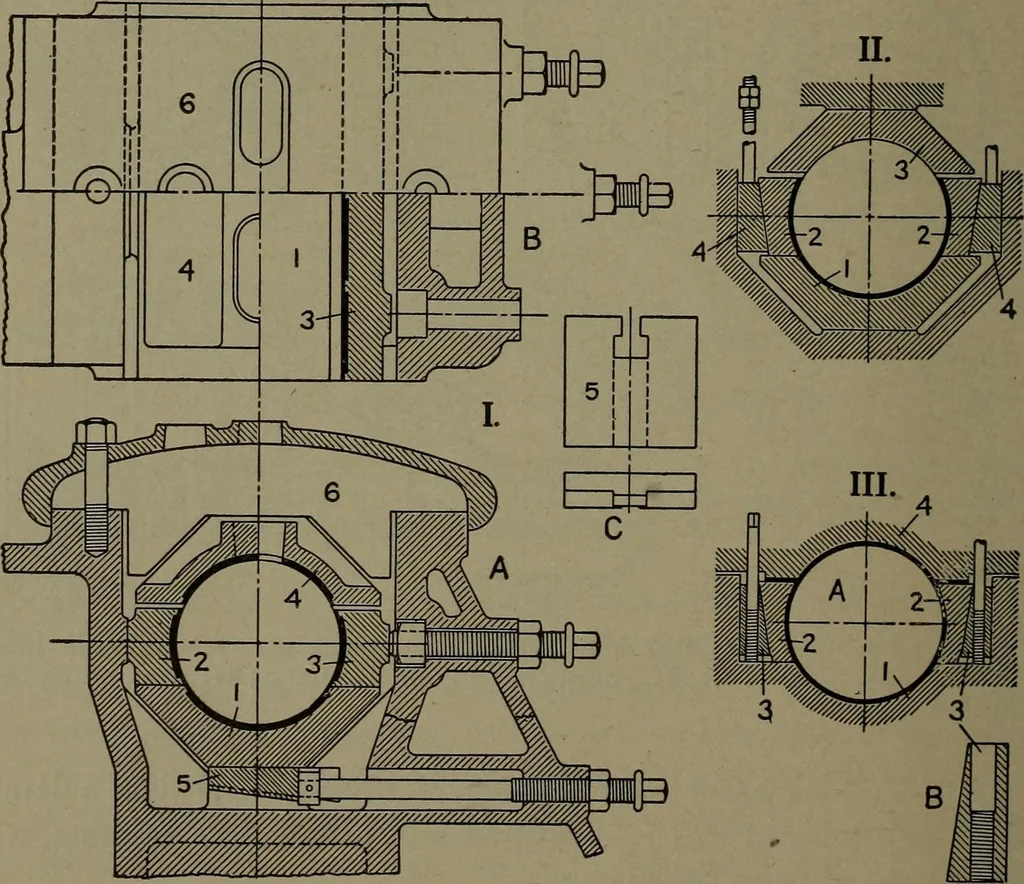

ch serves as a dowel, to keep the boxes from ever turning with theshaft. View C is a plan of the casing, with the boxes removed. Thelubrication arrangements, besides the oil well and the rings with peepholes above them, include a light collar fastened upon the shaft at theouter end of the bearing,… … Fig. 217. — Bearings for Engines of the Corliss Type. I, from engine in Fig. 3,scale 1 to 24; II, III, different arrangements of adjusting wedges. Corliss-engine Bearings. — In horizontal engines of the Corliss type,the bearings are usually made in four parts, with side adjustment either § 36 (A;)]…
