The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 372

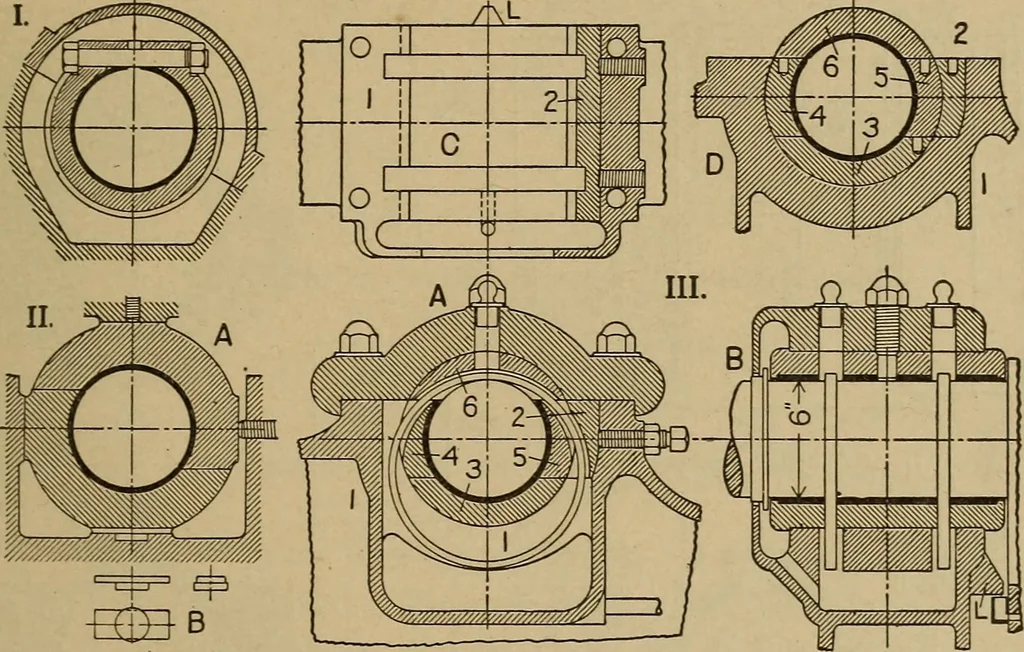

counterforce is needed than can con-veniently be provided Tvdth iron, the weights are made hollow andfilled with lead, especially on locomotive wheels. Beside large built-up arrangements as in Fig. 215, solid-forgedshafts are much used in marine engines, more on naval vessels thanin merchant… … ^&B Fig. 216. — Bearings for High-speed Stationary Engines. I, one-piece bushing,with elastic adjustment; II, simple bearing in two parts; III, ring-oiUng bearingin four parts. but the fact that a wheel must be taken off in order to replace a damagedbearing shell has led to the substitution of…
Steam-engines · Steam-turbines
