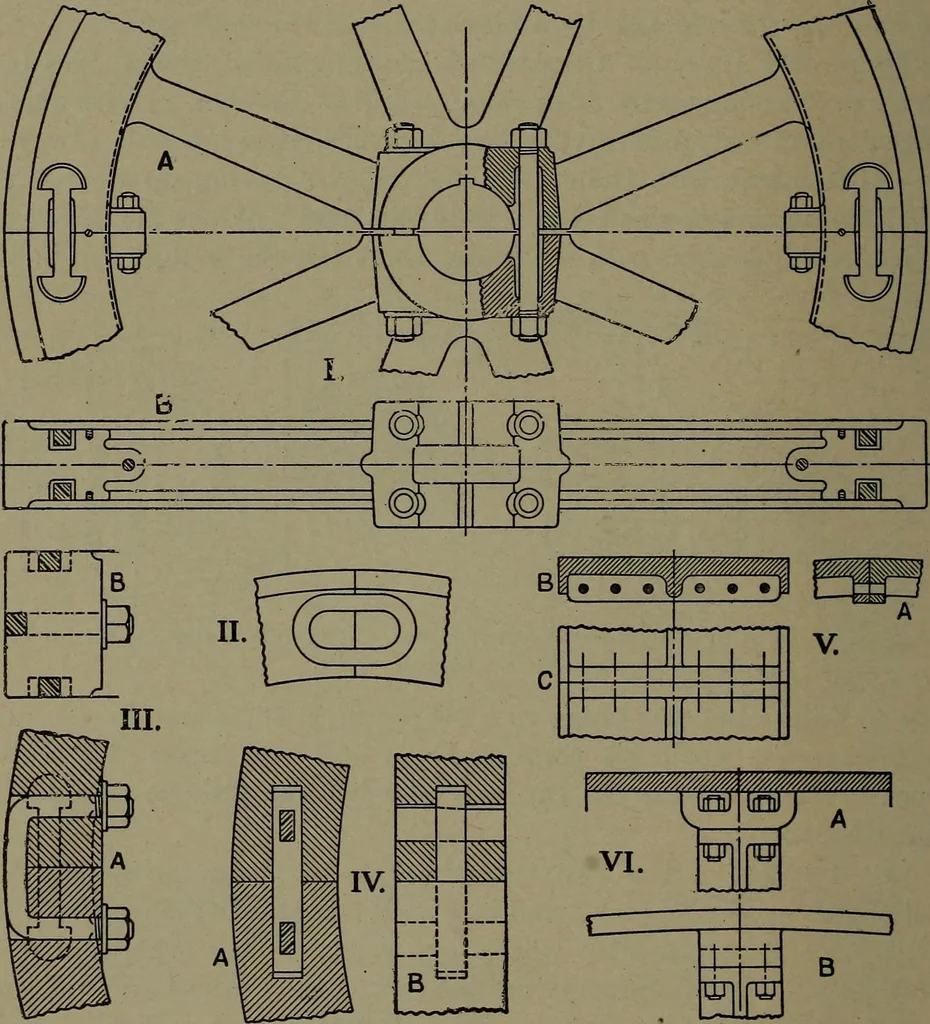

e hub and acommon rectangular key. At II there is a single big bolt in the plane 360 WORKING AND CONSTRUCTION OF THE ENGINE. [Chap. VII. of the arms, and the key is replaced by set screws which fit into pocketsmilled in the shaft. Wheels up to 16 ft. in diameter are commonly made in halves —the… … Fig. 219. — Balance Wheels of Medium Size. I, from engine in Fig. 3; diameter16 ft., weight 62,000 lb., scale 1 to 48; II to VI, details of wheel joints. The hub is strongly clamped upon the shaft by four heavy bolts, whilethe strongest part of the rim joint consists of the two I-shaped shrinkbolts…
