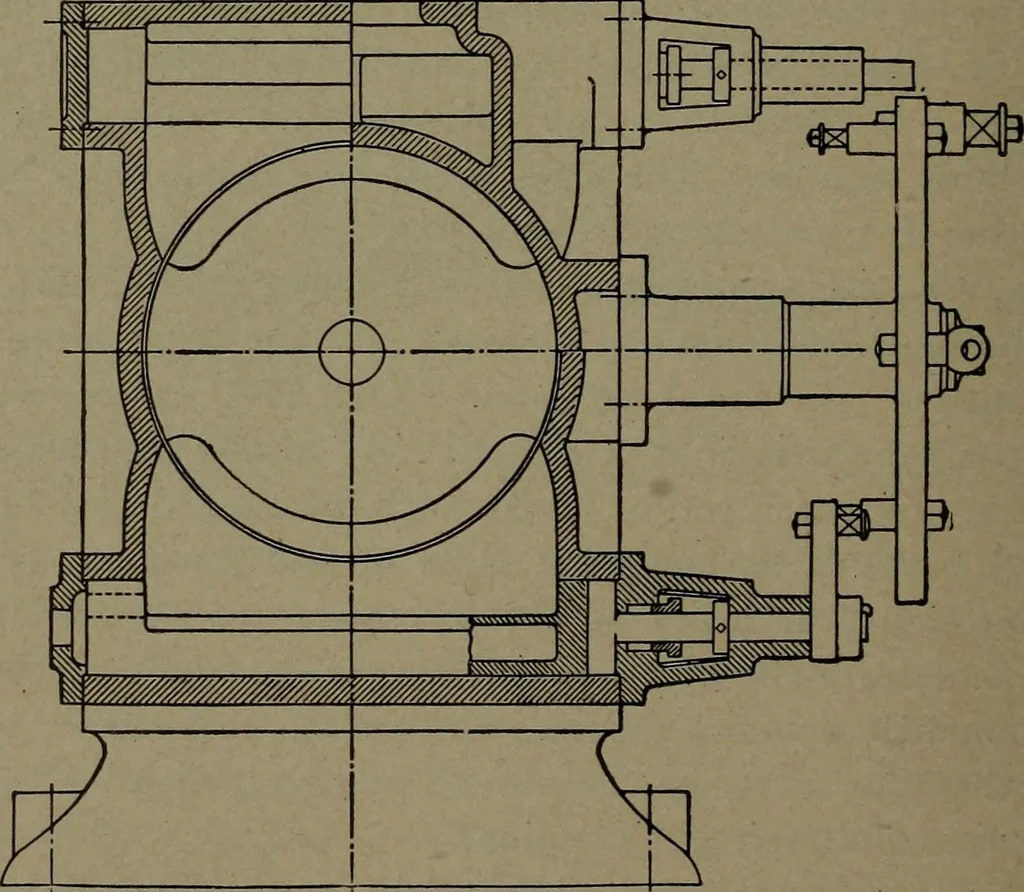

Fig. 265. — Lengthwise Section of Corliss Cylinder, 26 by 48 in. Scale 1 to 21. … Fig. 266. — Cross Section of the Cylinder in Fig. 265. Upper right-hand quartertaken at mid-length, the rest of the section through -the head-end ports. The result sought and obtained is, that the valve shall have a widerand quicker movement in the direction for opening, a shorter andslower…
