Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 211

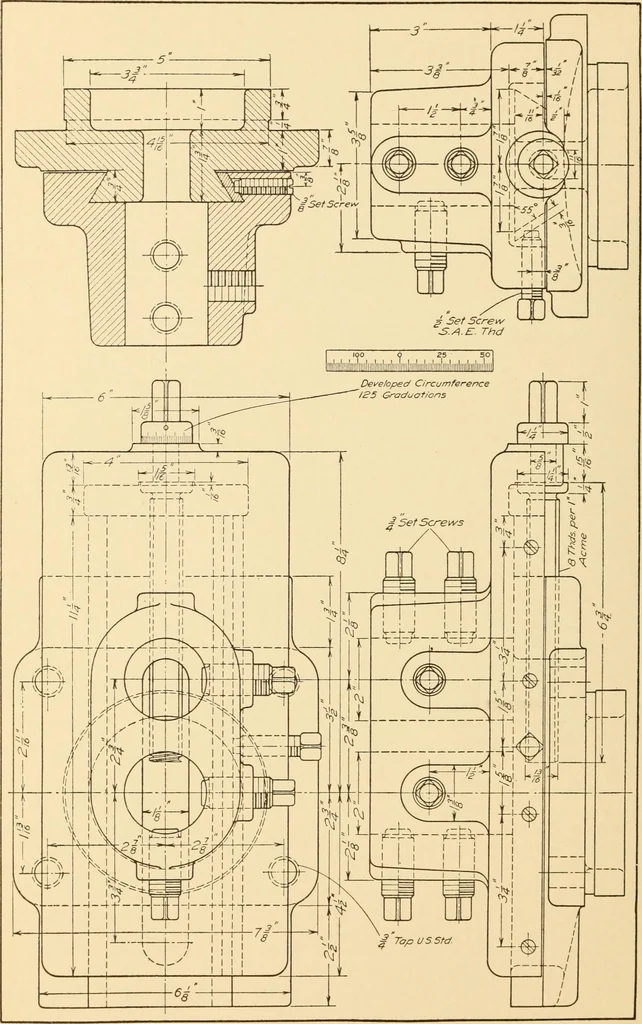

detail drawing of the BEARING LINING. Willgo full size on large size sheet, Fig. 236. Draw front view as a half section. PROB. 182, Figs. 326, 327, and 328.—Make an exterior assembly drawling of thecomplete bearing. Show two or three views as specified by instructor. PROB. 183.—Make an assembly… … 200 Fig. 329. Prob. 185. PROBLEMS AND STUDIES 201 SLIDE TOOL HOLDER 205. The slide tool holder shown in Fig. 329 is from a drawing supplied by theFoster Machine Company, Elkhart, Ind., and is described by them as follows: Designed for boring, recessing, back facing, and like operations, this…
Machinery
