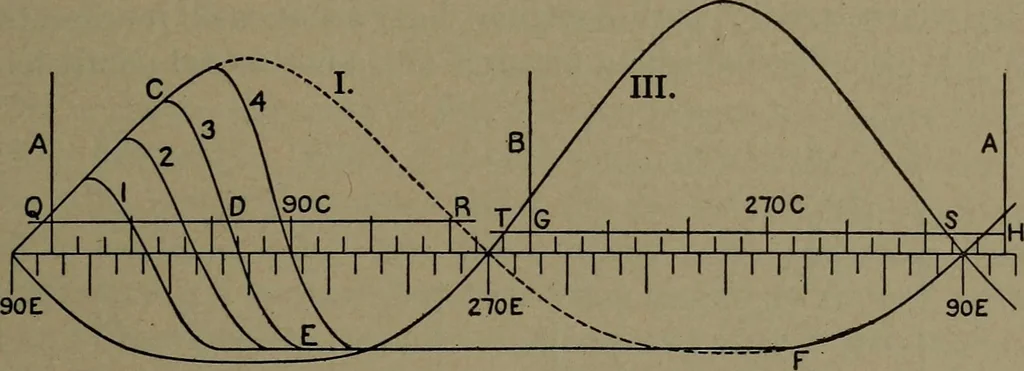

positions of thecrank, A for head end, B for crank end, and find the angle 8 to be about § 43 (/)] THE CORLISS VALVE GEAR. 411 106 deg. or the angle of advance about 16 deg. — this by noting thatwhen the crank is at A or zero, the eccentric is at 106 deg. on its scaleas marked below the base line.… … Fig. 272. — Diagrams for the Head-end Valves. quick closure under the pull of the dashpot, and the straight line EFthe period of rest while waiting for the next admission. These curvesare merely sketched in from general considerations, since a mathematicaldetermination of the action of the dashpot,…
