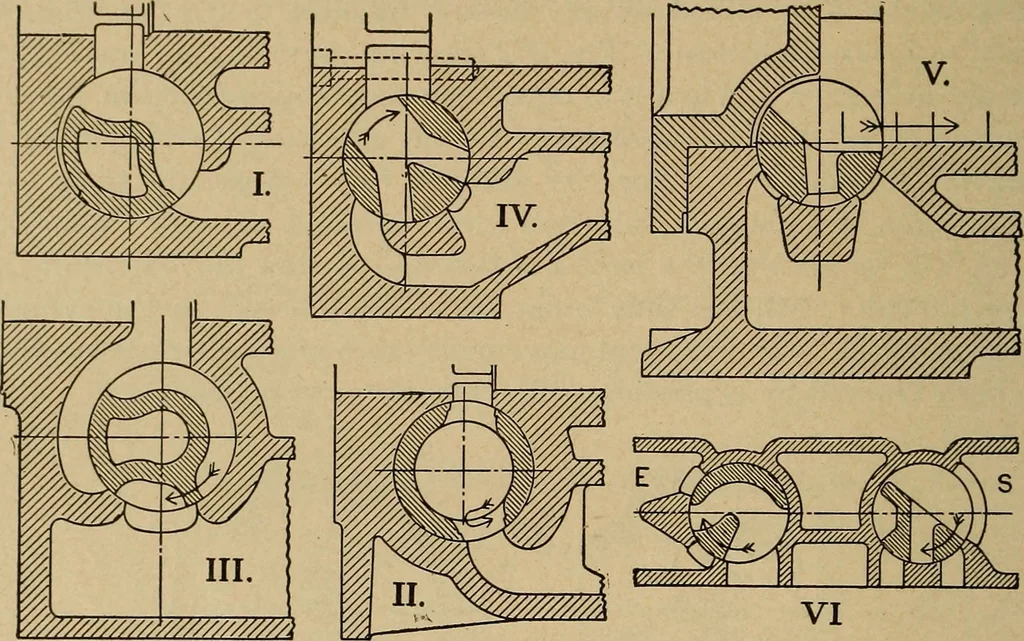

site arrangement, in Figs. 265 and 267, and at II and IV of Fig. 414 VALVE GEARS AND GOVERNORS. [Chap. VIII. 276, gives inside admission. With outside opening, the steam has alittle longer path to traverse; and the purpose of the passage throughvalves I and III of Fig. 276 is to make this path as… … Fig. 277. — Various Exhaust Valves: I. Plain Single-ported Valve; II. FlemingValve; III. Murray Valve; IV. Reynolds Valve; V. Brown Valve; VI. Valves inHead of Cylinder. 3. Double-ported valves are given in Fig. 276 III and IV and inFig. 277 IV, V, and VI. Besides benefiting the steam…
