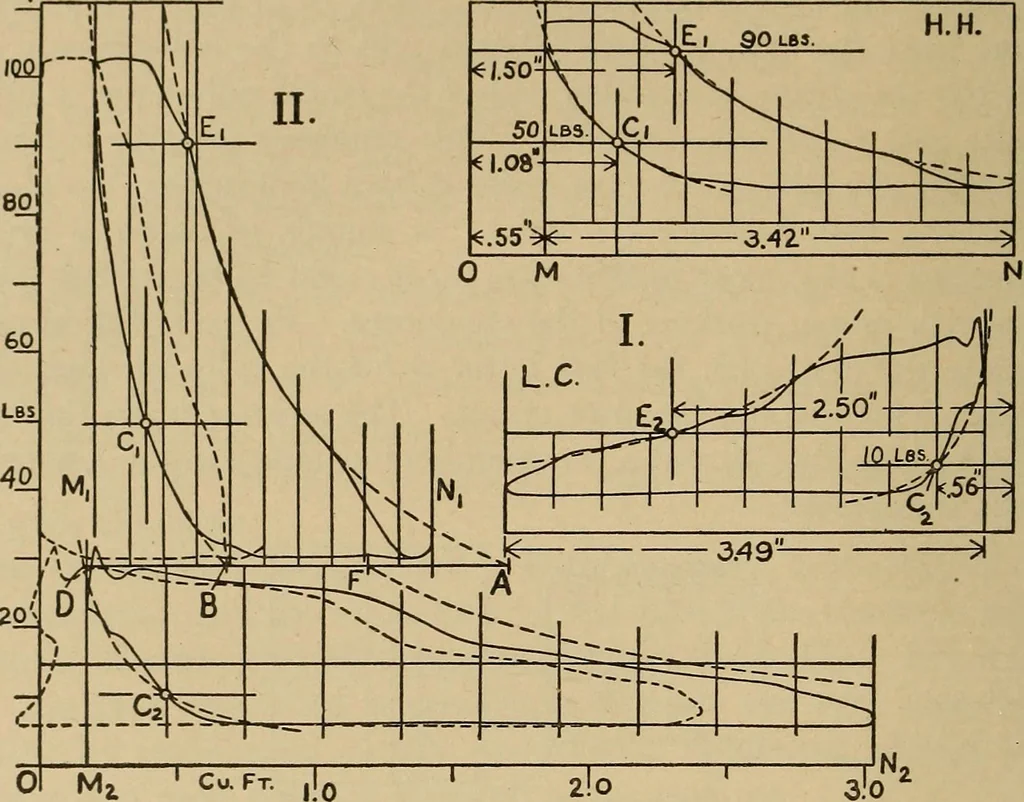

In this case, the pressure scale is the same as thatof the low-pressure diagram, so that ordinates from the latter can betransferred directly; while those from the high-pressure diagram must 156 ACTION OF THE STEAM IN THE ENGINE. [Chap. V. be multiplied by three, or measured off three times. Using,… … Ol Ml Cu.ft. ,1 Fig. 80. — Diagrams Combined on Clearance Lines. On the original diagrams, hyperbolas are drawn through chosenpoints, marked E and C, on the expansion and compression curves: onthe combined diagram, three of these are reproduced, all except thatthrough E2. Instead of the latter, the…
