The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 197

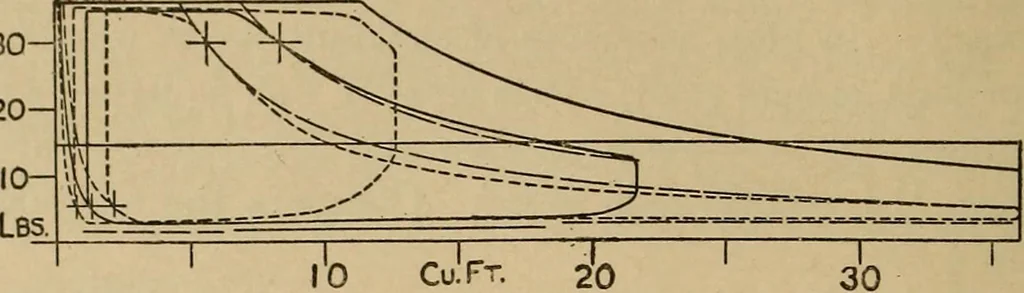

ount of expansion thatcan economically be carried out in one cylinder. In Fig. 92, the shrink-age of volume is more striking than in Fig. 90. Here hyperbolas aredrawn along the expansion curves, on the two diagrams with earlier 182 ACTION OF THE STEAM IN THE ENGINE. [Chap. V. cut-offs, also the… … FiG. 92. — Unit Diagrams from the Michigans Engine, Tests 1, 4, and 7. Clear-ance, 0.058; range of cut-off, 0.09 of stroke, at 33 lb. abs. to 0.92 at 32 lb. sharply. The formula points agree fairly well with a horizontal straightline, as against a slightly inclined line in Fig. 87. To make i^mf…
Steam-engines · Steam-turbines
