The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 265

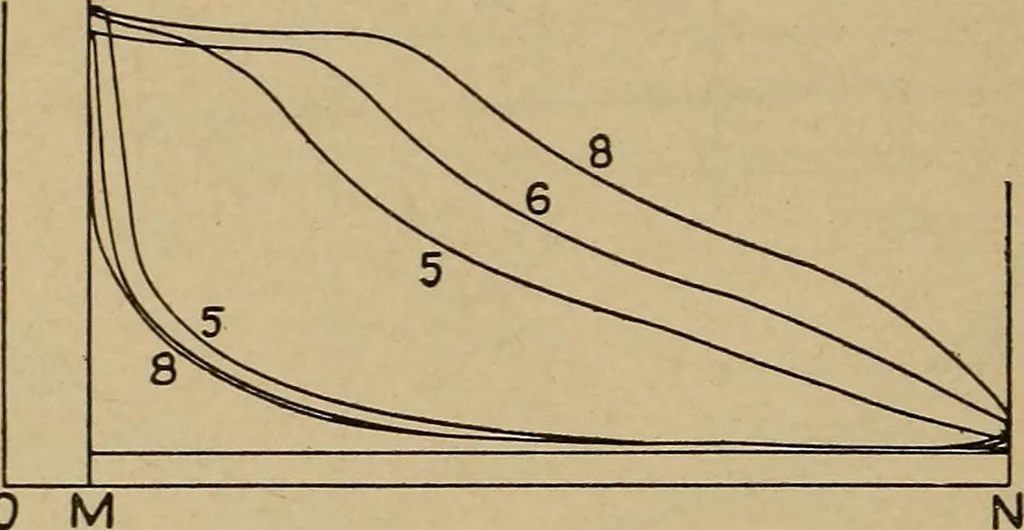

atter basis, 165 million at the plungers, or 175 millionat the steam pistons, is about the limit of performance of the engineworking on the Rankine cycle. The test marked (a), not given in Table 13, is from a Holly engineat Philadelphia, 30, 60, and 90 by 66 in., at 20.1 r.p.m., with steam at180… … 0 Fig. 132, — Mean Indicator Diagrams (four cylinder ends), from simple locomo-tive, 21 by 30 in., No. 2 in Pennsylvania Railroad Tests at St. Louis Ex-position, as listed under Fig. 103. (d) Engines with Large Compression. — This class is in strongestcontrast with that just considered. The large…
Steam-engines · Steam-turbines
