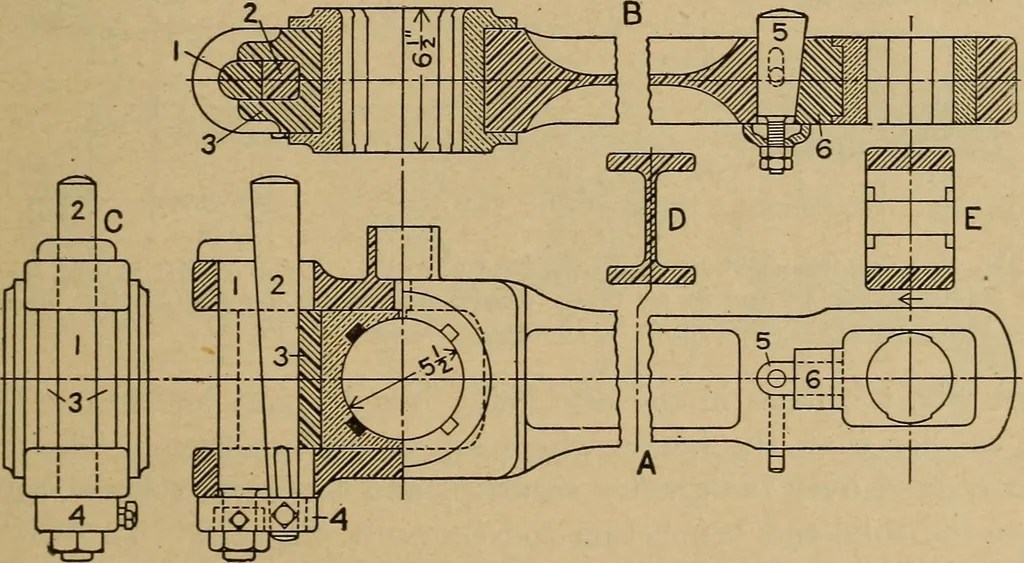

Bra lUlliiliLUi^ FiQ. 213. — Rod with Bolted Strap at Crank-pin end, for 22 and 42 by 27 in. cross-compound engine at 175 r.p.m. Scale 1 to 15. strap is a very good type of end construction, while the essentially equiv-alent jaw end in Fig. 214 is based on German practice. The marine … Fig. 214. — Rod for Locomotive, with special forked end. Scale 1 to 12. type, at the crank pin in Fig. 2, is used almost without exception onmarine engines, and very largely in stationary practice. A point to be noted is whether adjustm^ent for wear will shorten orlengthen the rod. In Figs. 2, 212,…
