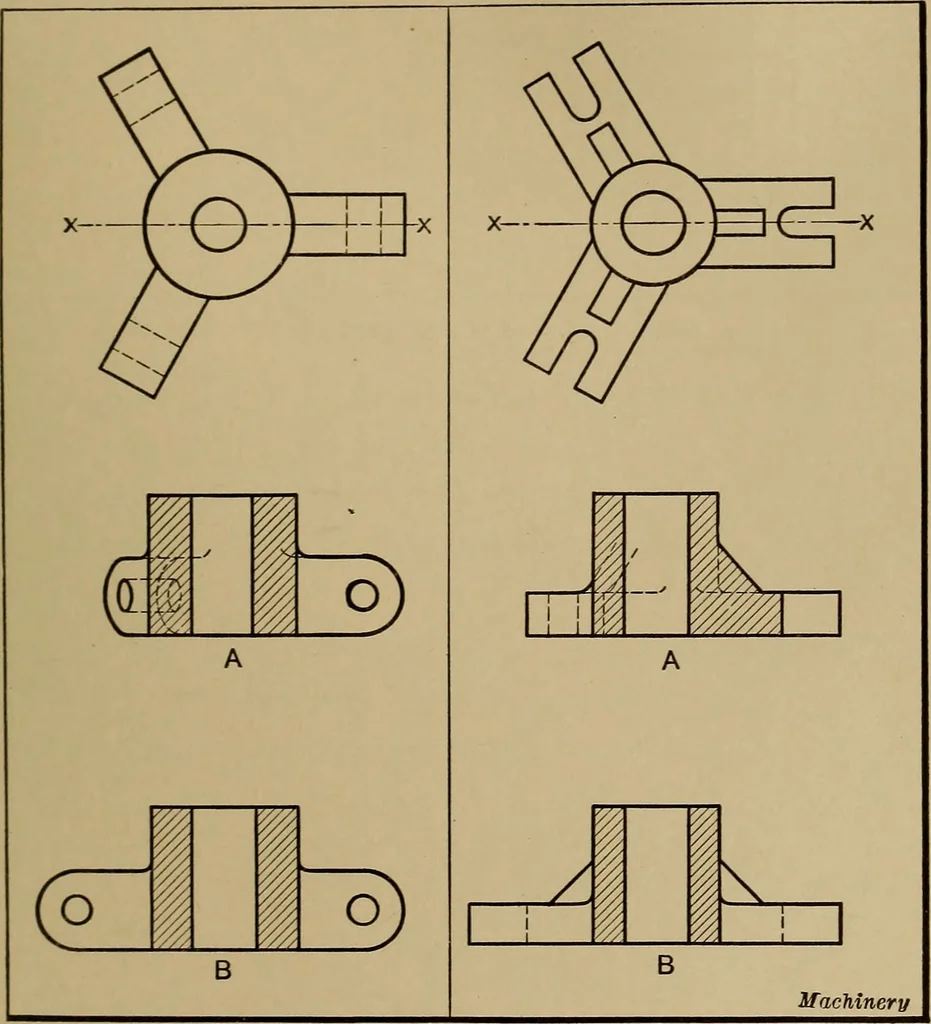

subject ofsymmetrical parts, as far as sectioning is concerned, is closelyrelated to the drawing of ribbed parts in section. Figure 13shows a section on X-X at A, in which the lugs are projected. SECTIONAL VIEWS 109 This gives the idea of lack of symmetry. The lug lying onX-X is treated as a rib… … Figs. 13 and 14. Two Kinds of Cross-sectional Views method of representation. Figures 15 and 16 show the treat-ment of circular objects with arms, A being the incorrect andB the correct representation in each case. The alternatemethod shown at C is another correct representation of theobject shown…
