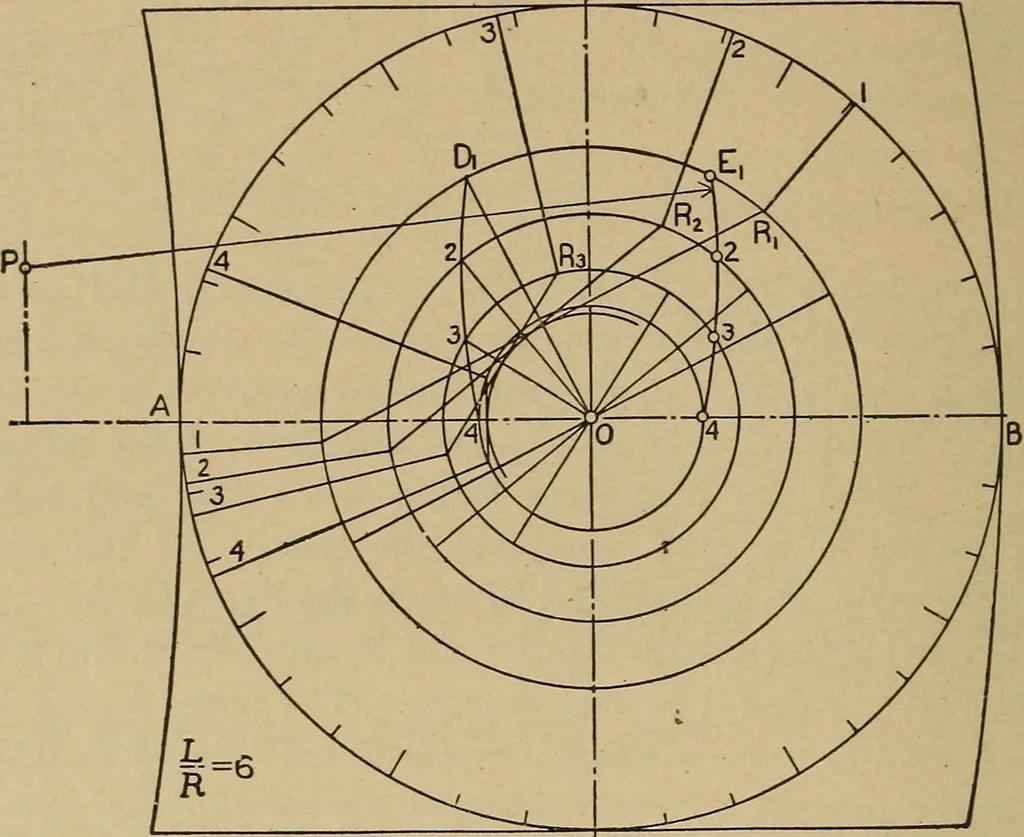

^ curved. (d) Problems on the Shaft Governor. — The following data arefrom actual engines, as were those for Fig. 236. In each problem, getthe eccentric locus first, and then draw valve diagrams for the greatest … Fig. 236. — Valve Diagrams from a Shaft Governor. eccentric radius, for cut-off at one-third of the stroke, and for theearliest cut-off. One-third is chosen because it will give an effectivecut-off, referred to the boiler pressure, at about one-quarter of thestroke; and it is upon this cut-off that…
