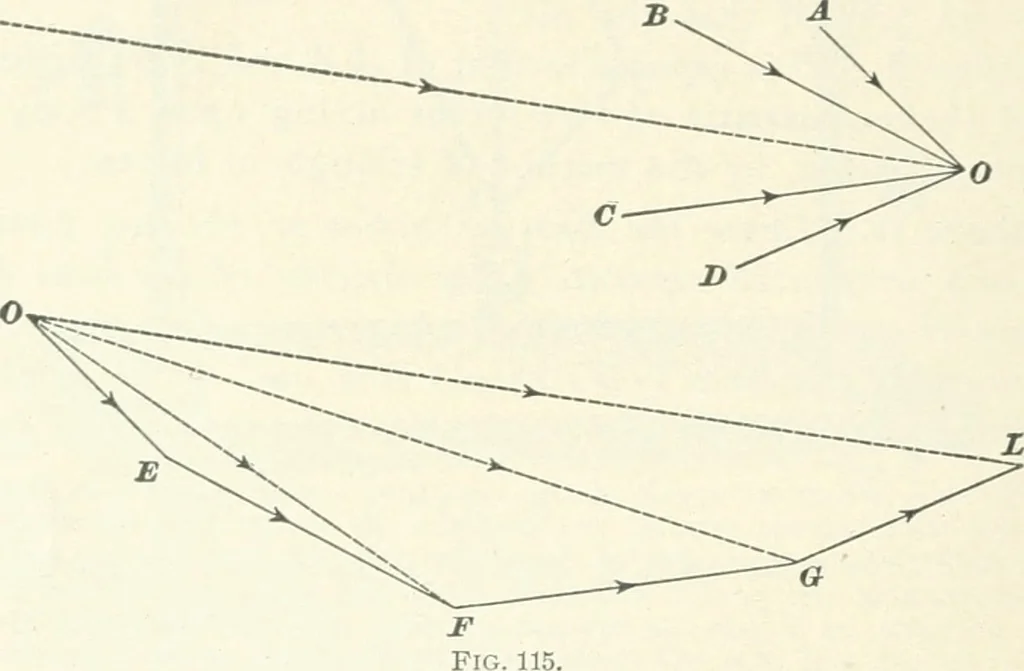

ltant of O E, EF, and FG, and likewiseoi A O, B O, and CO. The line FG, parallel to CO, could not be drawnfrom the point O to the right of O E, for in that case it would be opposedin direction to OF; but FG must have the same direction as 6/% inorder that the resultant may be opposed to both O 7^… … L O were drawn parallel and equal to O L, and having the same direc-tion, it would represent the effect produced on the body by the com-bined action of the forces AO, BO, CO, and DO. 879. In the last figure, it will be noticed that O E, E F,F G, G L, and L O are sides of a polygon O E F G L,…
