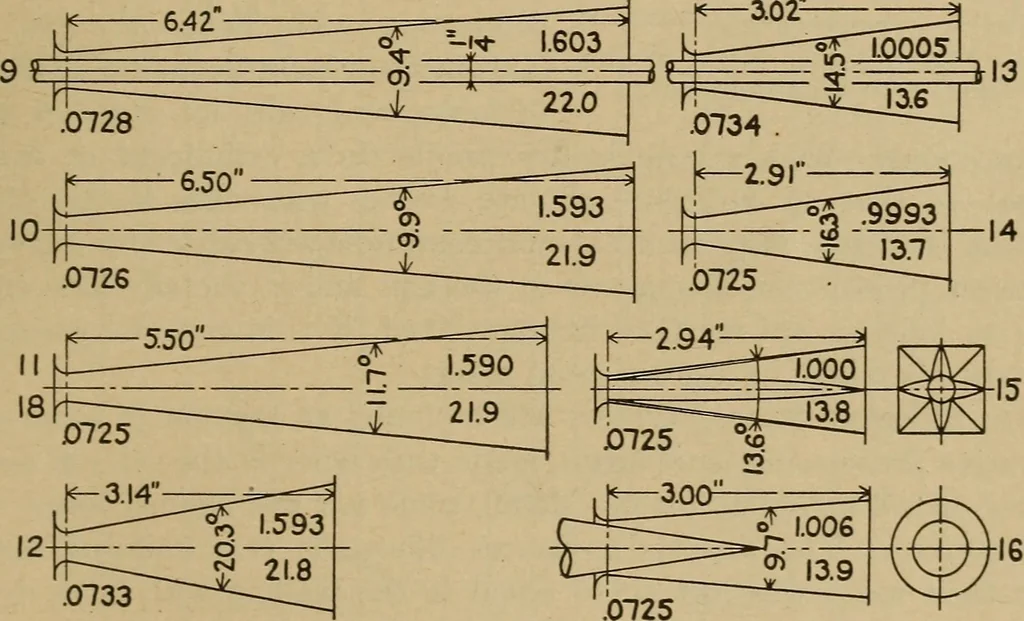

ideal flow; then coefficients of discharge can be read off directly.The short vertical fines across sets 11 and 14 will be referred to fromArt. (k). The vertical spacing has no quantitative meaning, but eachhorizontal line ties together the tests made on a certain date. For thepresent we note… … Fig. 330. — Nozzles tested by Sibley and Kemble. area ao in square inches; near the muzzle, first the mouth area a2, thenthe area ratio a2/ao. x\ll the nozzles were of machinerj^ steel, boredsmooth and polished; except that No. 18, otherTvase like 11, was leftwith a fine tool mark, which, however,…
