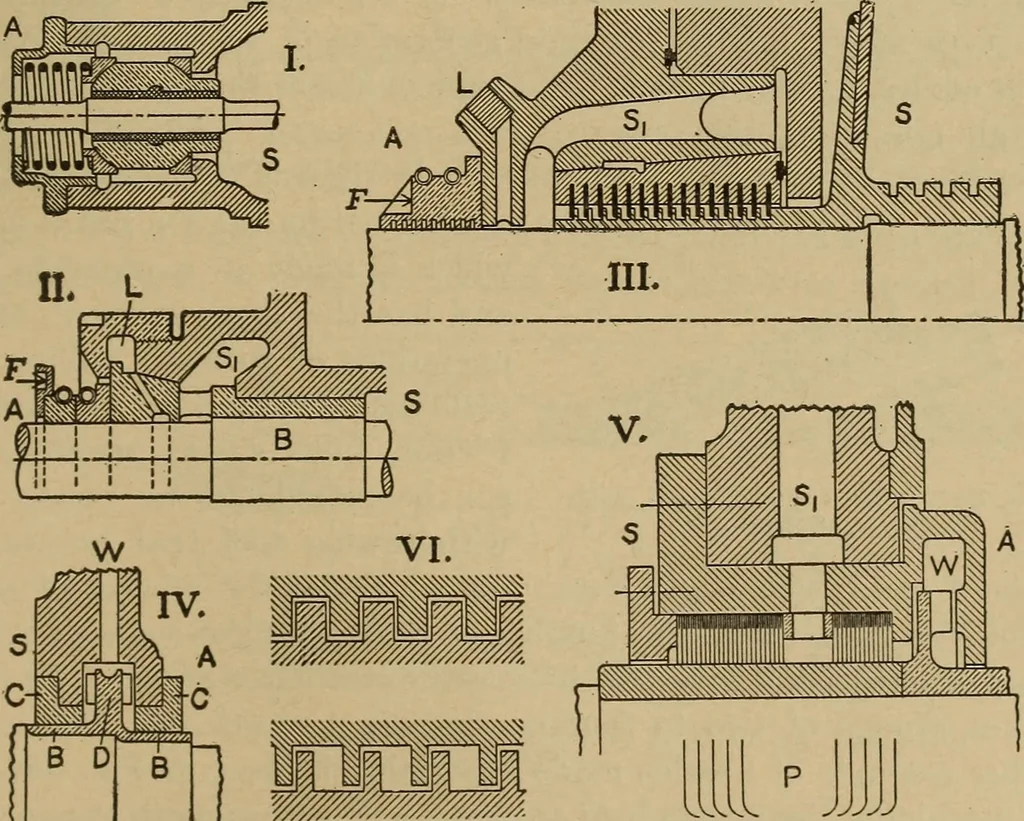

surrounded by an atmosphere ofsteam at the points where leakage can occur; and then this steamatmosphere is shut off from the air by lightly fitting segmental contactrings, tied together by helical band springs and pressed inward axiallyby compression springs which exert the force marked F, Oil is… … \A f M iiv. ^pi B D 6 VII. Fig. 363. — Packing Devices for Turbines: I, De Laval, from Fig. 18; II, Rateau,as in Fig. 20; III, Oerlikon-Rateau, later design; IV, Parsons, from Fig. 25;V, Sulzer, Fig. 26; VI, VII, Two Types of Labyrinth Packing. 524 DESIGN AND CONSTRUCTION OF THE TURBINE. [Chap. X.…
