The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 549

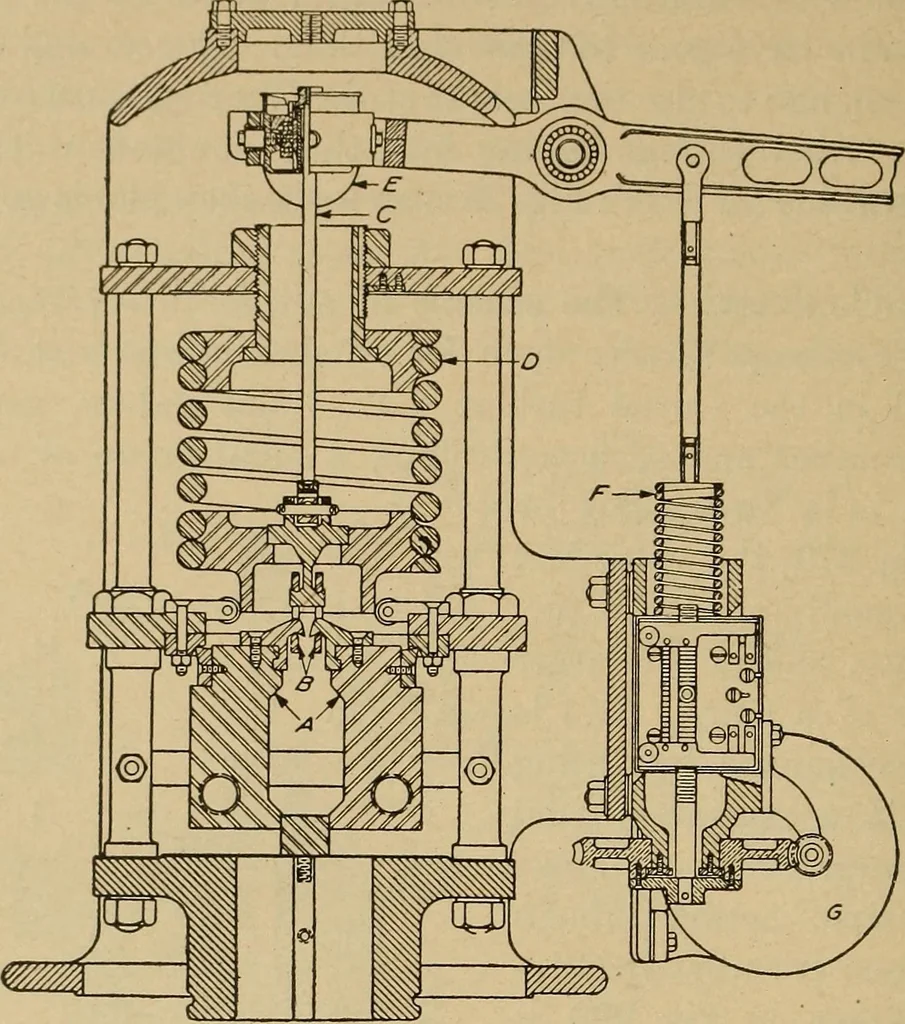

Fig. 379. — Nozzle Valves for theCurtis Turbine. 534 DESIGN AND CONSTRUCTION OF THE TURBINE. [Chap. X. … Fig. 380. — Governor of the Curtis Turbine. governor, is connected by a ball-bearing joint atE to the stationary lever, the outer end of whichmoves the pilot valve of the oil cylinder. At F isan auxiliary spring for changing the running speed,which may be adjusted from the switchboard by a 13 CO…
Steam-engines · Steam-turbines
