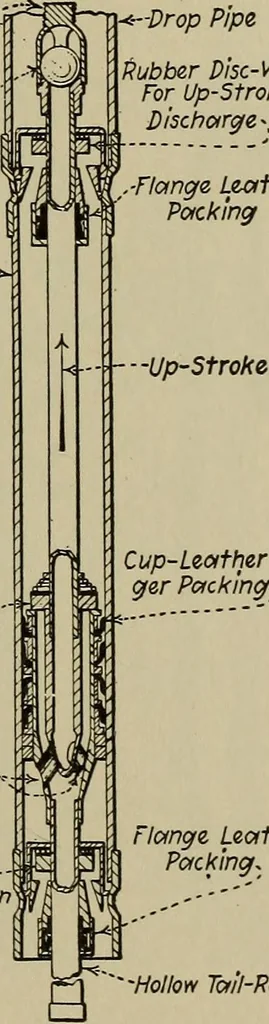

n especially de-signed for this service.V 1 89. Crank-Action Pumps For Deep-Well -^ Service are of three kinds: (1) Single-acting pumps discharging on the up-stroke only(For exception see Sec. 90), Fig. 101. (2) Driving-Rod .Connection-- Brass Ball-Valve-For Down-Stroke Brass CylinderShell--...… … Cup-Leather Plun-ger Packing. Flange LeatherPacking. ■Hollow Tail-Rod Fig. 101.—CylinderOf Single-Acting Deep-Well Pump. Fig. 102.—Cylinder Of Double-Acting Deep-WellPump (Plunger Making An Upward Stroke). Double-acting pumps having one plunger but discharging onboth the up-stroke and the…
