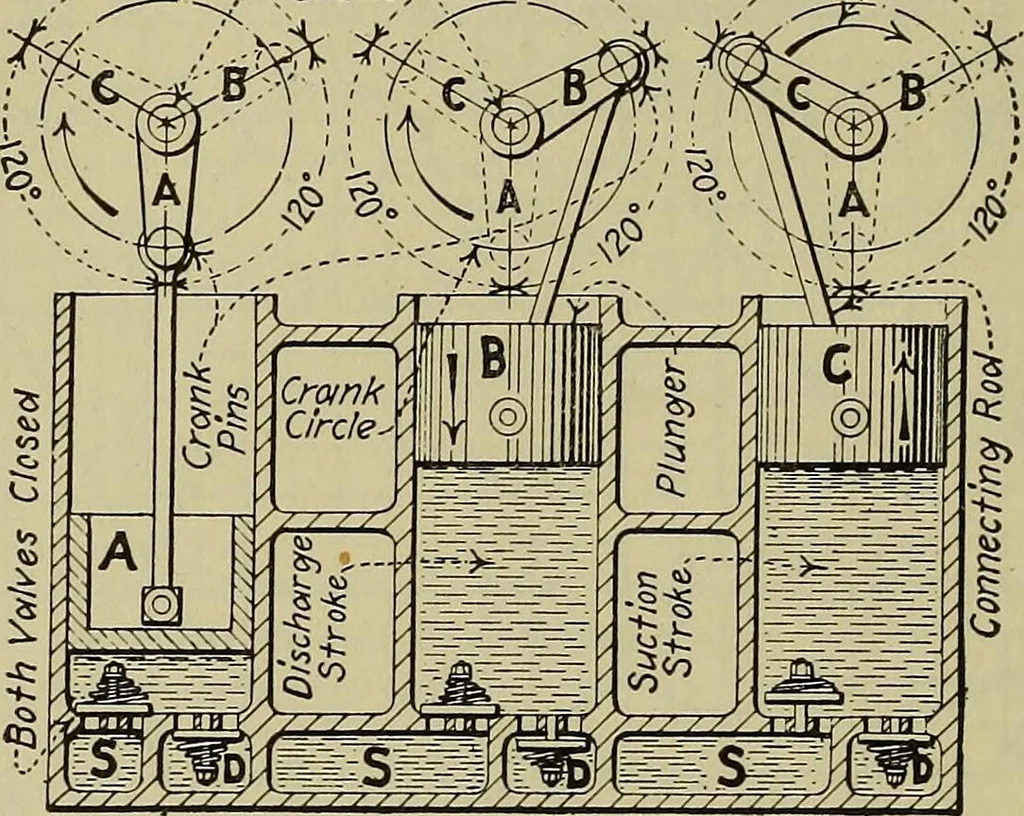

-Cranks Fig. 116.—Main Gear And Crank-Shaft Of A Triplex Power Pump. 92 STEAM POWER PLANT AUXILIARIES [Dw. 3 point A is on the zero discharge line. Cylinder B is nearing its maximumrate of discharge as shown by the rise of graph B at B. Cylinder Chas passed its maximum rate of suction, as shown by… … Fig. 117.—Diagrammatic Illustration Of A Single-Acting Triplex Pump, ShowingRelative Positions Of Its Elements At A Given Instant. (See preceding illustrationfor graphs.) 93. The Allowable Speed For Crank-Action Pumps variesover a wide range according to conditions. The followingvalues are from…
