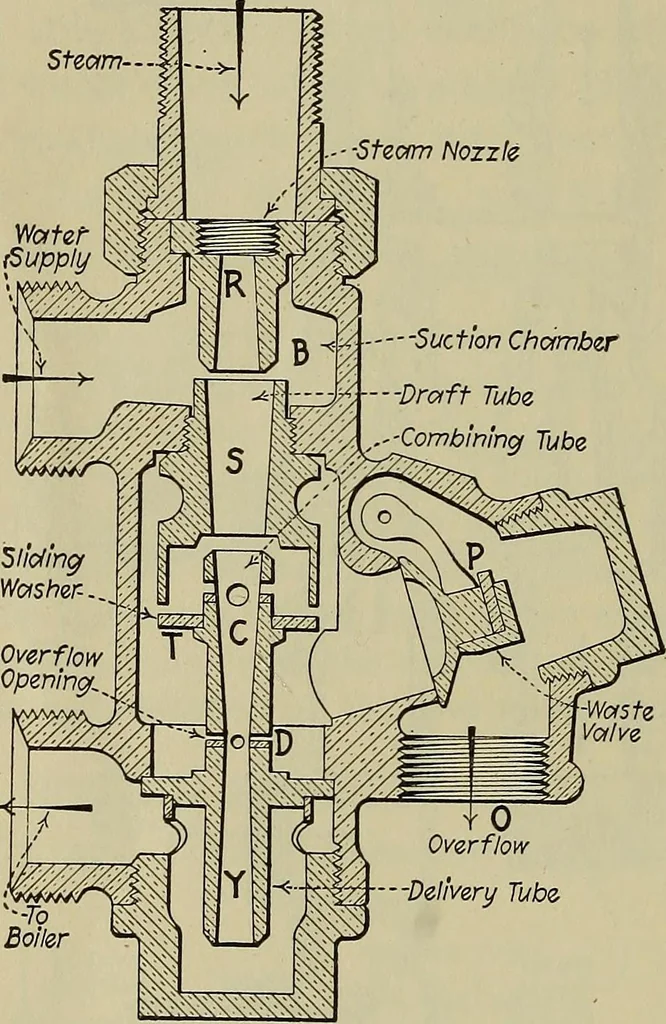

f water-and-condensed-steam creates a par-tial vacuum in tube C. This draws the loose washer, T, up against itsseat. Thereby is prevented any inrush of air which would scatter thejet. The closing of T also prevents any loss of feed water through it.If the steam or water supply becomes interrupted,… … v-7bBoiler Fig. 180.—Penberthy Single-Tube Auto-matic Injector. Sec. 185] INJECTORS 159 185. How A Positive Injector Works is indicated in Fig. 181which shows a section view through a Metropolitan Model 0Injector. This is of the positive, double-tube, lifting type andis operated entirely by one…
