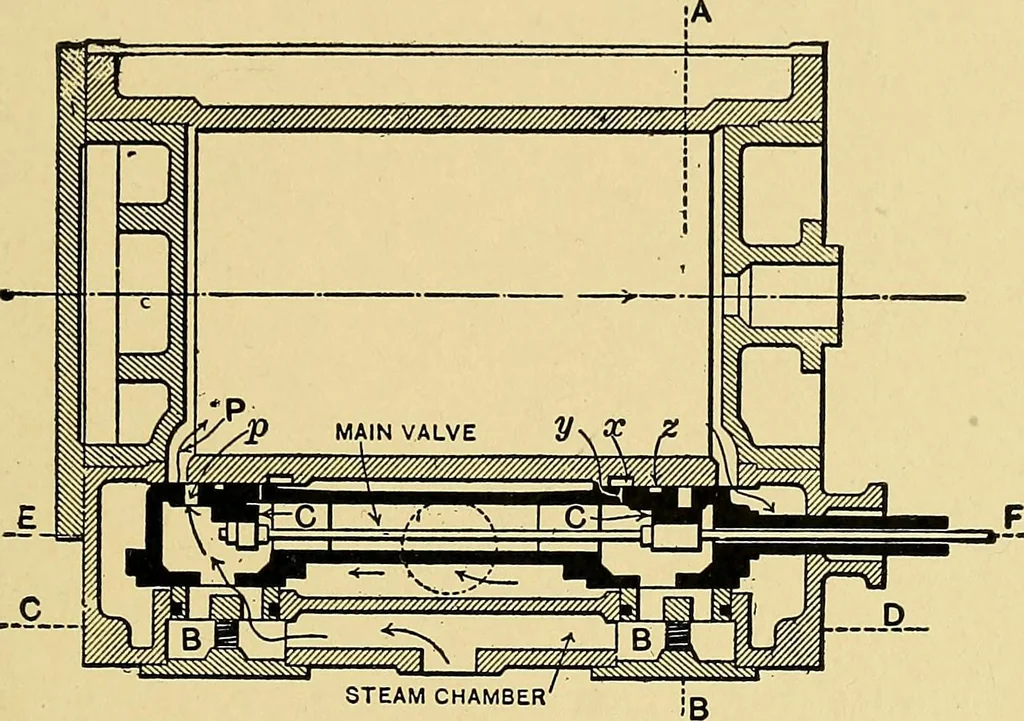

ach end of the cylinder serves alternately for the pur-poses of admission and exhaust. 92 THE BUCKEYE ENGINE 93 Both valves are driven by positive valve gear. The main valve re-ceives its motion from a fixed eccentric and governs the admission and therelease or compression. The cut-off valve is… … STEAM CHAMBER FIG. 96. — HORIZONTAL SECTION. and valve gear. As shown by Figs. 96 and 98, the valve chest is dividedby partitions into two separate and distinct parts, a steam chamber andan exhaust chamber. The main valve is a flat hollow box of the horizontaland vertical sections shown in Figs. 96…
