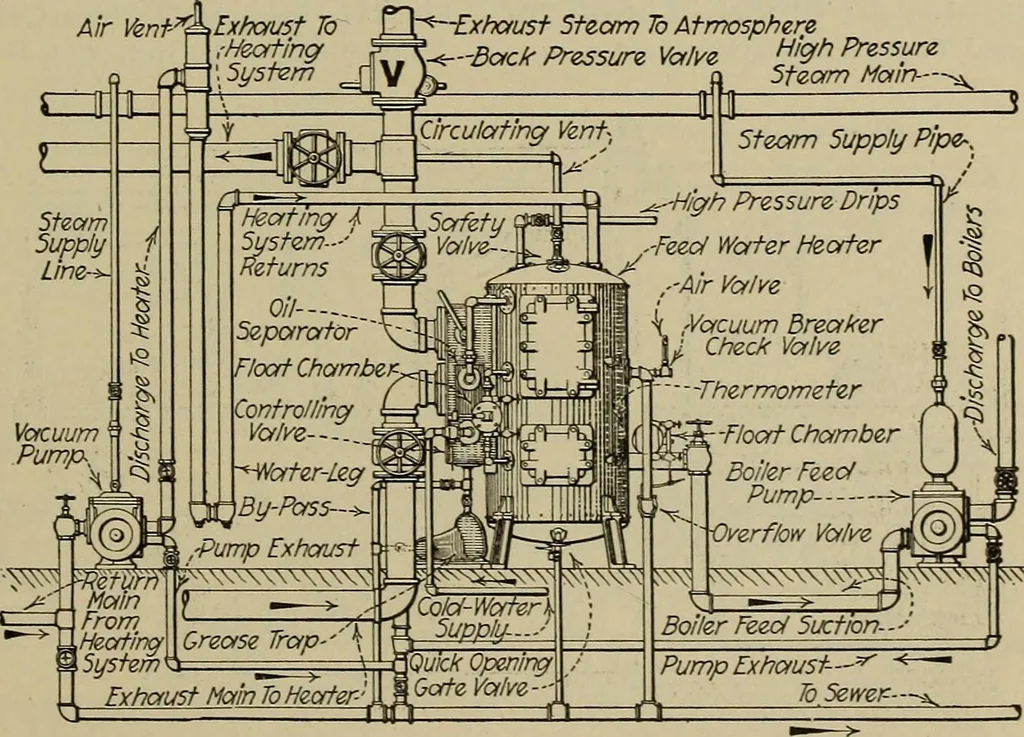

f^^^^^^^^^^^^^^^^^^: Exhaust Main- Fig. 228.—Hoppes Horizontal Exhaust-Steam Feed-Water Heater Installed ForInduction Operation With Gravity Heating System. ixhaust Steam To Atmosphere W-Back Pressure Valve H9h Pr^rz a Steam Ma/n—-±til ~ … SSSJ? Fig. 229.—Typical Installation Of Open Feed-Water Heater Pipes For InductionOperation In Connection With Vacuum Heating Plant. arrangement, if more steam is received than can be condensedin the heater, the excess passes through the heater to theatmosphere or heating system. 222 STEAM POWER…
