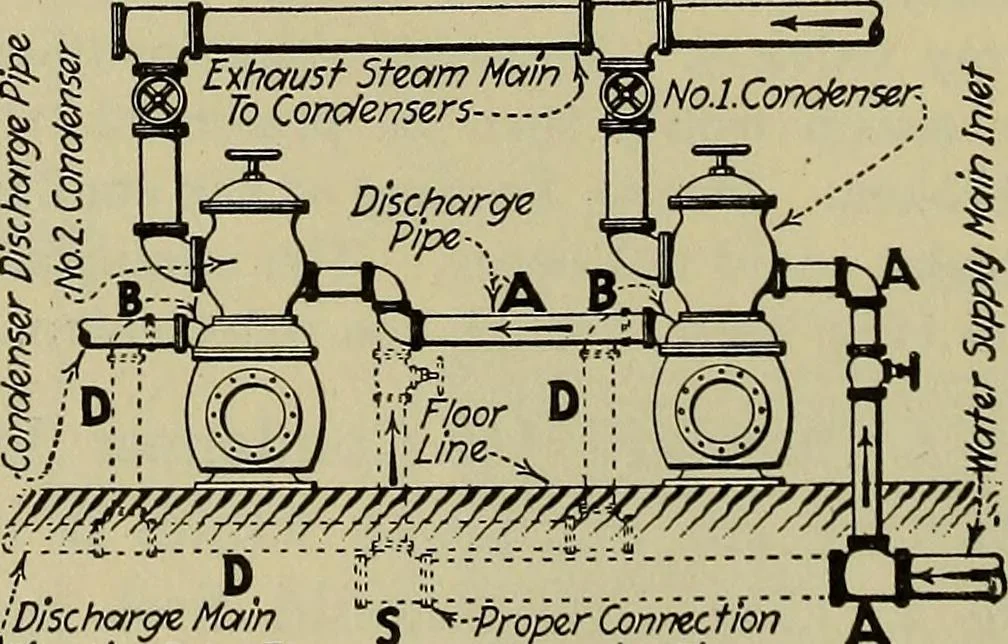

myya-wrw.- Fig. 299.—Installation Of Jet Condenser With Reciprocating Engine. circulating systems are connected in series as by pipe A, the arrangementwill be unsatisfactory. Condenser 1 will use water at a lower tempera-ture than condenser 2, and the vacuum will therefore be higher in 1. … V* D 7 *?;:-■--•* f [Discharge Main j■Pipe L he Below Floor ■Proper Connec tionOf Suction Pipe Fig. 300.—Showing Jet Condensers Connected In Parallel And With Injection-WaterConnections In Series. If the vacuum is equalized in the two condensers by partially closingthe exhaust steam valve to…
