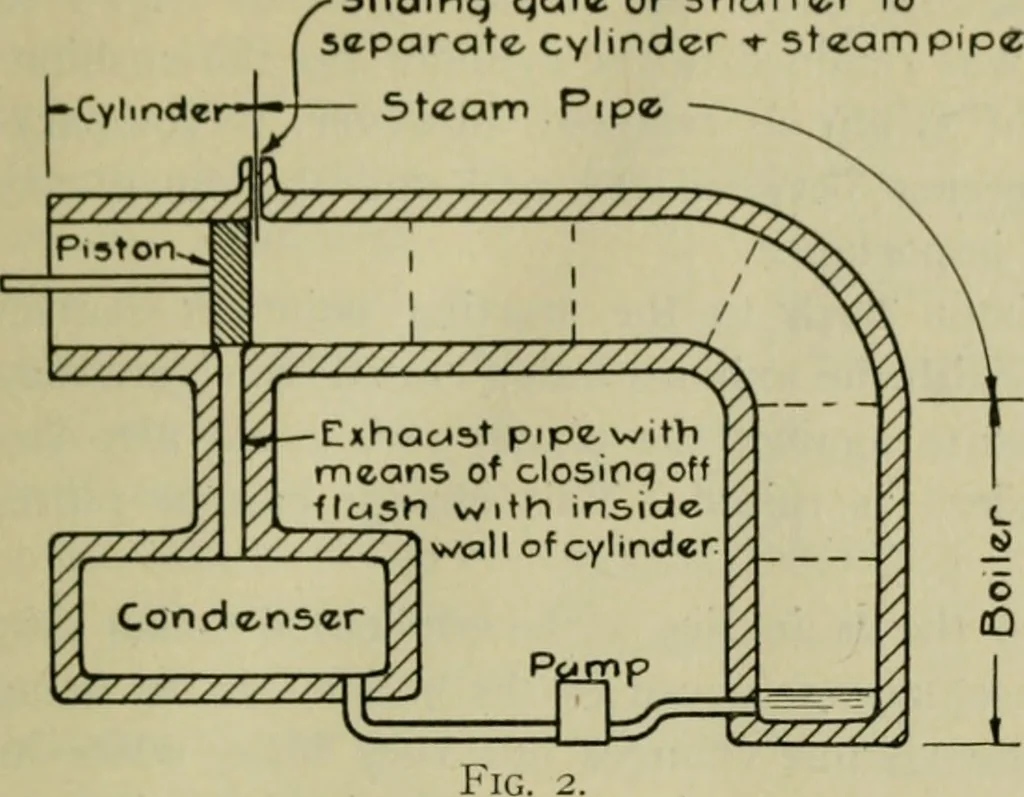

face of the water in the boiler and piston in the cylinder.We might consider that the space mentioned is filled with several unitvolumes of steam in contact with each other, as indicated by the dottedlines in the boiler and steam pipe, and of such a size that each weighsone pound. Now we can cause… … (hieing or generatinganother unit vohmie ofsteam at the surface ofthe water in the boiler.To do this, heat, ofcourse, is required. The changes involume and pressurethat take place in thisimaginary engine cyl-inder can be chartedon a diagram similar tothat in Fig. i. Thisdiagram is given inFig. 3,…
