Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 427

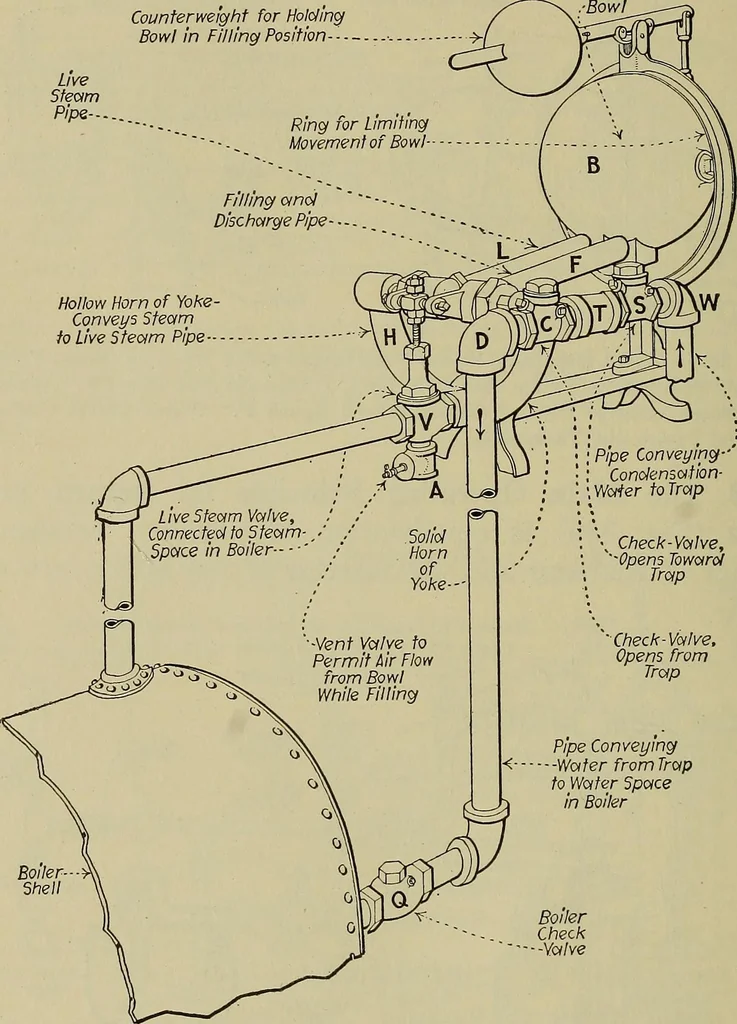

mitting boiler-steam to the trap. With the equalizationof pressure, the water which has been collected in the trapflows out by gravity. 406 STEAM POWER PLANT AUXILIARIES [Div. 13 489. The Volume, In Cubic Feet, Of Steam Required ForEach Discharge Of A Return Trap is approximately equal tothe… … Check-Valve, Opens Toward Trap Check-Valve, Opens from Trap BoilerShell Pipe Conveying < Water from Trap to Water Spacein Boiler BoilerCheck-Valve Fig. 399.—Bundy Return Trap. When B Fills With Water And Falls, V Opens AndA Closes. Steam Then Passes Into Bowl Through H And L, And Water Is Forced…
Steam power plants · Pumping machinery
