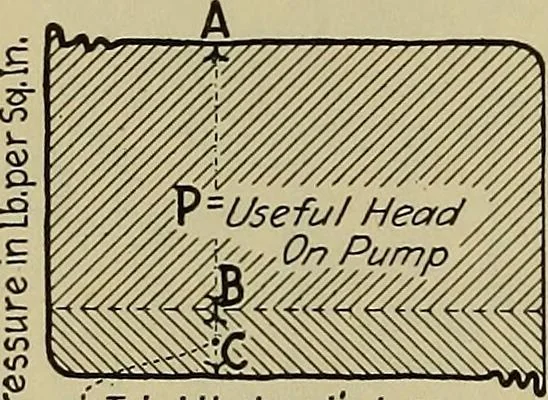

fgage D and some distance away from it.Hydraulic indicator cards (Fig. 26) are thentaken, and at the instant the card is taken thedischarge gage (D, Fig. 25) is read. Compute Pas above indicated, and lay off this pressure (lineAB, Fig. 26) to the scale of the indicator card,measuring downward from… … Total Hydraulic Losses Fig. 26.—Indicator CardTaken On Water End OfSteam Pump, ShowingTotal Hydraulic Losses. 38. The Usual Practice In Determining The Load On APump is to attach a pressure-gage to the discharge-pipe,D (Fig. 25), and to the intake-pipe, S (Fig. 25), a gage whichindicates both…
