Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 86

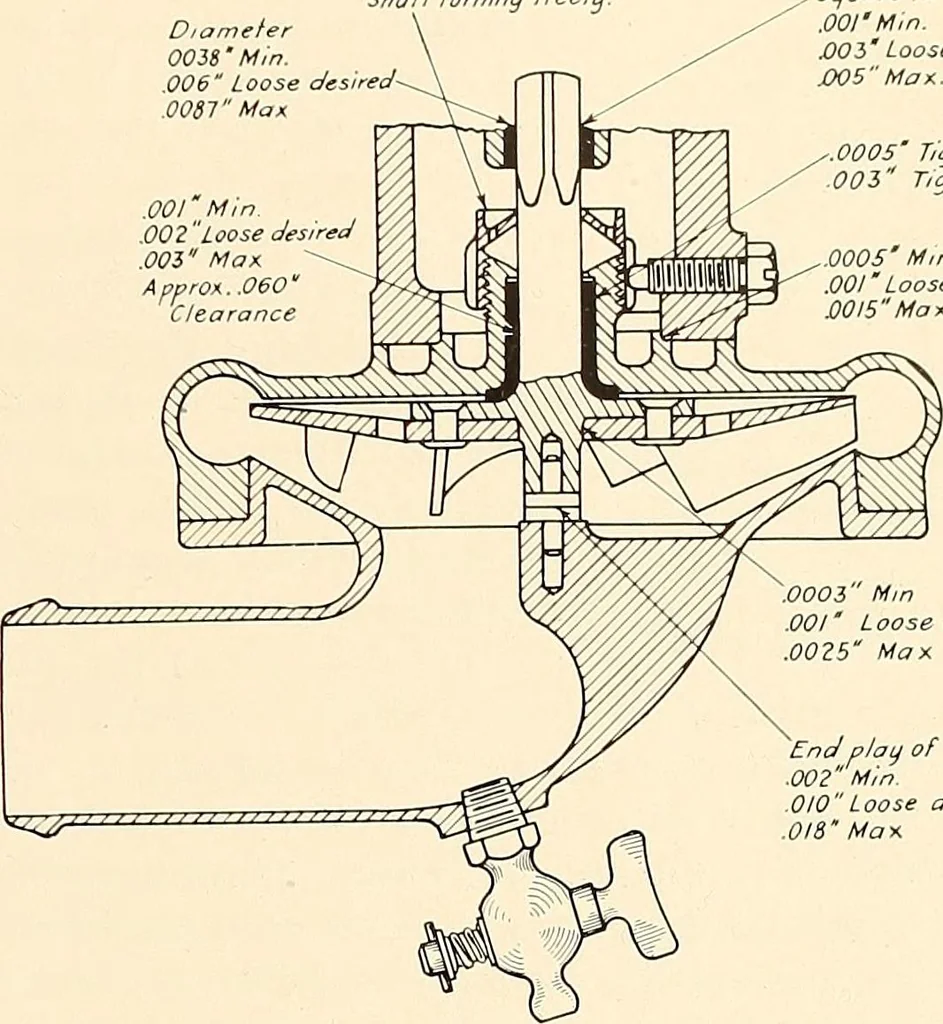

t isunlikely that the wear will be important unless there wasa broken ball in the bearing. In the lower half are all the oil connections, the pres-sure release valve and the oil screen. The condition ofthe threads, surfaces, etc., should be inspected with a viewto detecting possible oil leaks. The… … Square fit,001Min. O03 loose desiredXK>5 Max. .0005 Tight Mm003 Tight desired .000 S Mm .001 Loose desired 00 IS Ma*. 0003 Mm .001 Loose desired .0025 Max Endplay of shaft.002Min .010loose desired01S Max Fits and tolerances for water pump of all models hose leading to the oil pressure gauge is…
Airplanes
