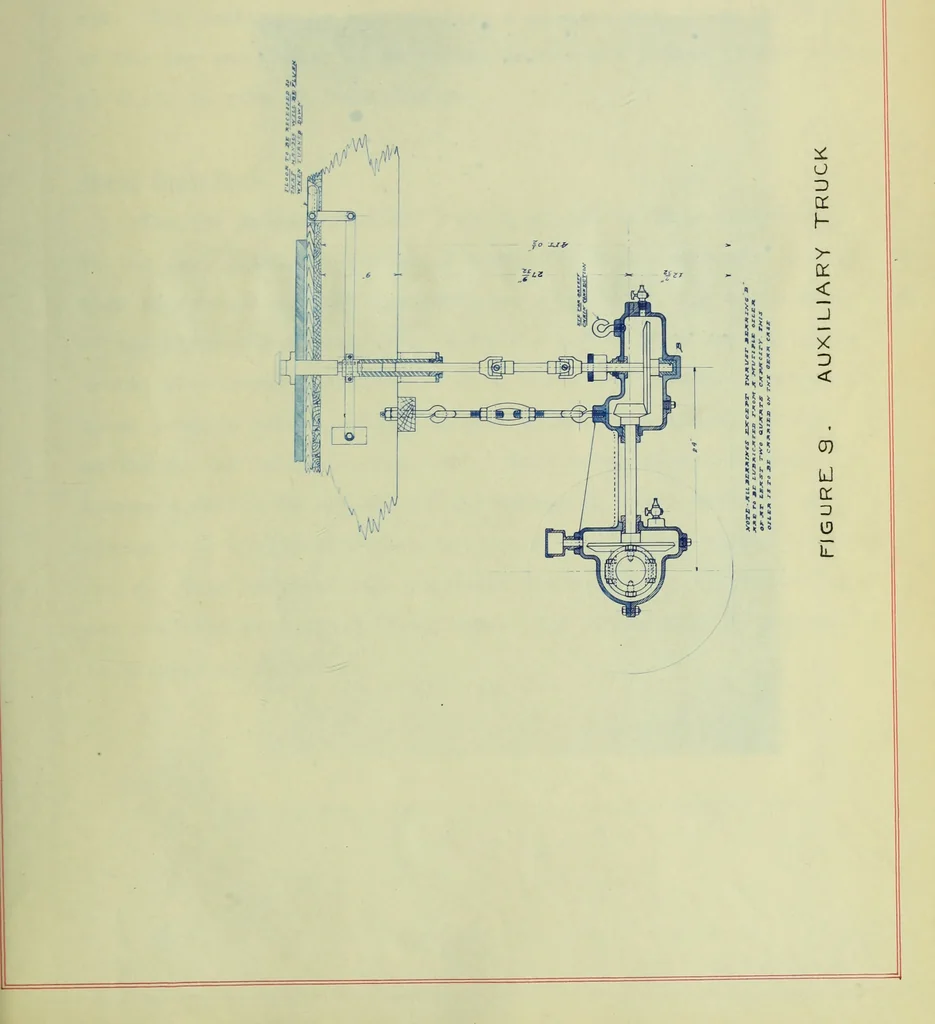

orders and drive the chart on a distance base. The generalconstruction of this truck is evident from the photograph in Fig.3The truck is located near the center of the car and is rigidlyattached to the car body. These wheels are 24 7/l6 inches indiameter and have a flat face. In order to avoid the… … -25- car. To the axle of the aiixiliary truck is attached the pinionof a bevel gear» This drives a second hevel gear, properly en-cased for protection from dirt and grit, which in turn transmitsthe motion to a vertical shaft extending thru the floor of thecar. The gearcase is suspended l>y a…
