Steam turbine engines : their construction, care and operation (1910)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago : Frederick J. Drake · leaf 27

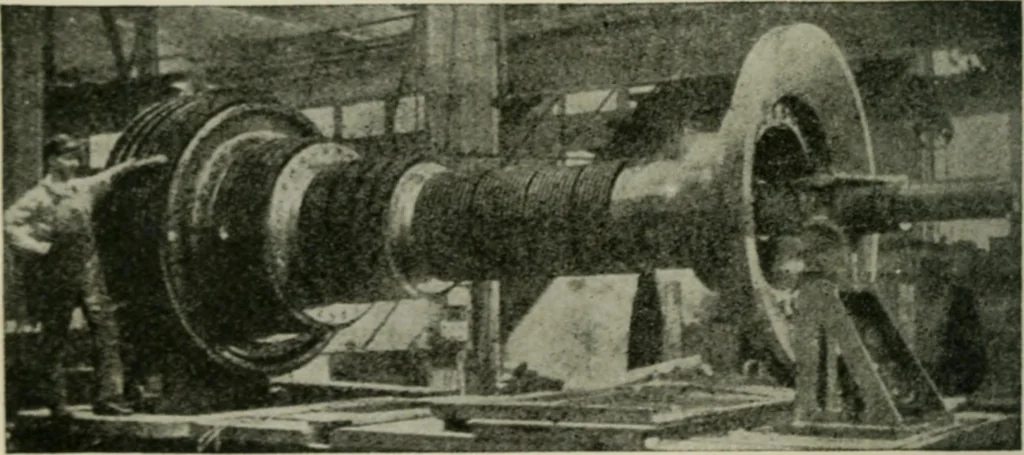

therelation of the stationary hlades to the niovini; hlades whenin position, and also shows hy tlie arrows the course of thesteam and its cliange of direction caused hy the stationaryhlades. For the purpose of explanation the moving hlades orvanes may he considered as small curved paddles… … Fig. 240 The stationary vanes, as previously explained projectfrom the inside surface of the cylinder. Both stationaryand moving vanes are similar in shape, and are made ofhard drawn material, and they are set into their placesand secured by a caulking process. The hlades vary in sizefrom ^2 to 7…
Steam-engines -- Design and construction · Steam-turbines -- Handbooks, manuals, etc
