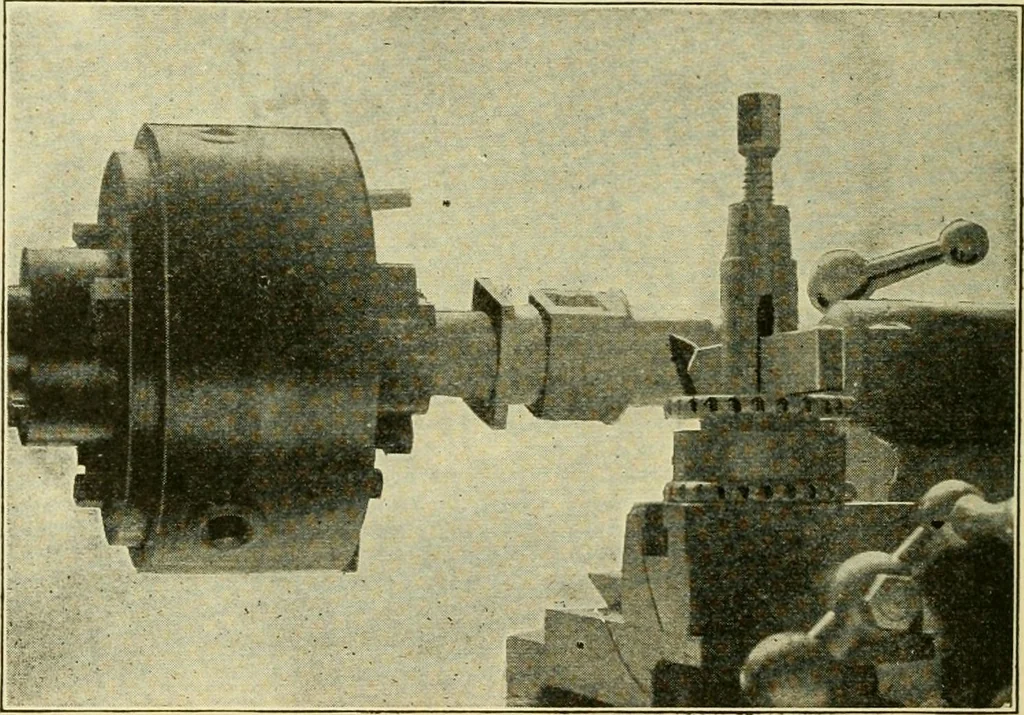

e Mechanics only with work which cannot be held in the chuck. Ifthe outside of the cylinder being turned had to be per-fectly accurate a wooden mandrel would not be used, butin this case all that is desired is a finished outer surfaceand no special attention need be paid to extreme ac-curacy. The… … Fig. 192—Turning the outside of the cylinder on a wooden mandrel with a centering drill and the center is inserted in thisto further support the work of the mandrel. The dia-mond-pointed tool is then used in bringing the outsideof the cylinder to tlie proper dimensions. In cutting theshoulders at…
