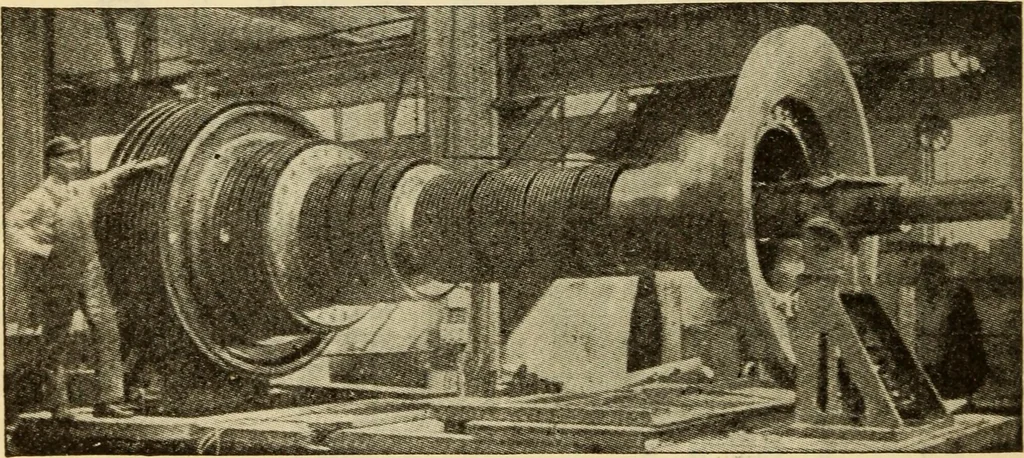

ustrates therelation of the stationary blades to the moving blades whenin position, and also shows by the arrows the course of thesteam and its change of direction caused by the stationaryblades. For the purpose of explanation the moving blades orvanes may be considered as small curved paddles… … Fig. 246 The stationary vanes, as previously explained projectfrom the inside surface of the cylinder. Both stationaryand moving vanes are similar in shape, and are made ofhard drawn material, and they are set into their placesand secured by a caulking process. The blades vary in sizefrom Yo to 7…
