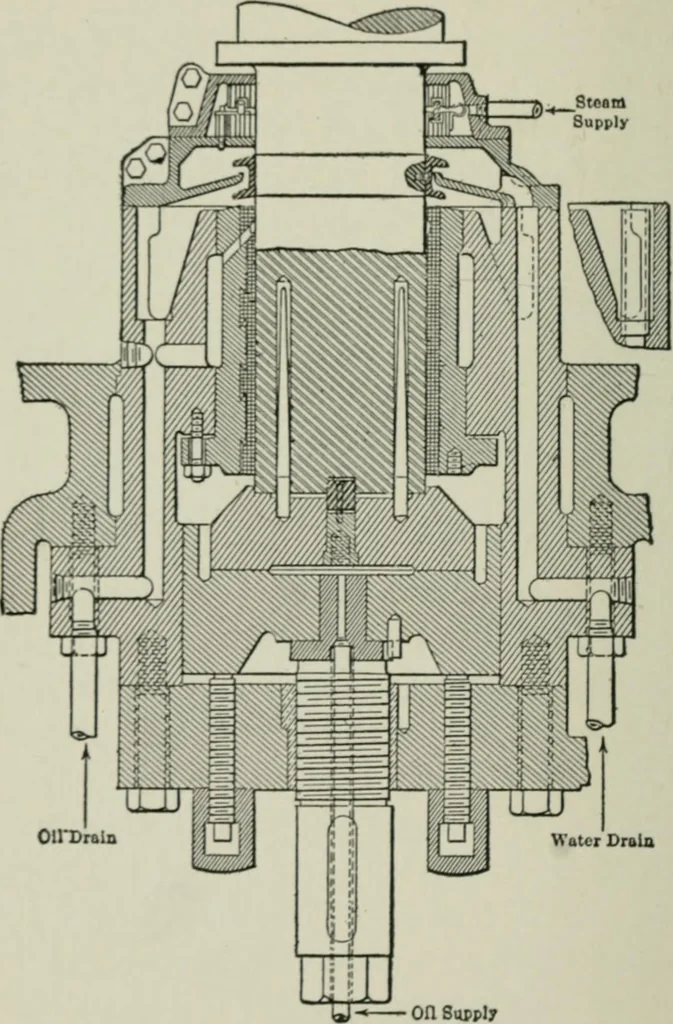

through the entire lengthof the large step supporting screw, and connects with theoil passage through the lower step block. Clearance.—T\^ith the Curtis turbine, the matter of clear-ance is very important. Tliere must be no rubbing contact St ill III Eiii/iiucring between tlie revolvinsx nnd… … on Soppty Fig. 200 into each stage, sometimes opposite a row of moving bladesand sometimes opposite the stationary blades. Two inch plugs are screwed into these holes, to he re-moved when an inspection is to be made. The clearance is The Curtis Turhine 57 not uniform in all the stages, but is least…
