Steam turbine engines : their construction, care and operation (1910)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago : Frederick J. Drake · leaf 82

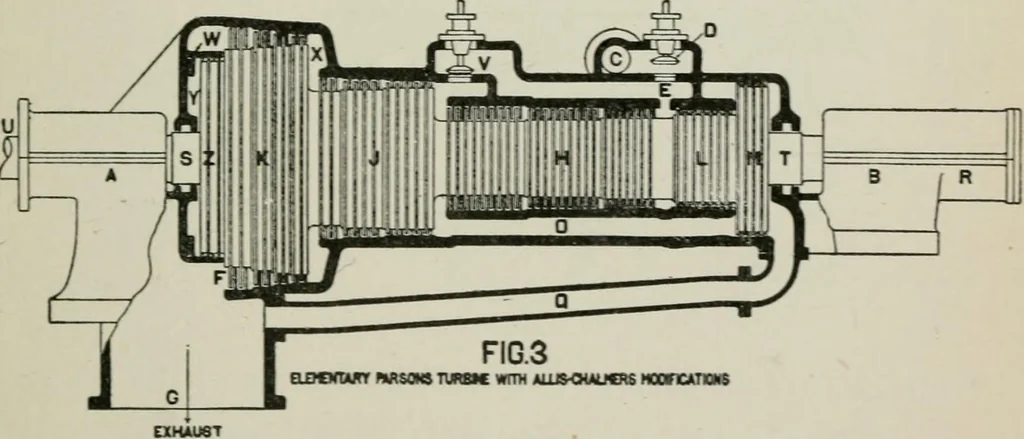

I r ^^ J G ! ^ tUMEKTARY F*RSONS TYPE STEAM TURBWE Fig. 21 the low pressure cylinder of a compound reciprocating en-gine. Valve V is arranged to be operated, either by thsgovernor or by hand;, as the conditions may require. Fric- … FiG. 27S tionless glands made tight by water packing are providedat S and T where the shaft passes out of the cylinder. Theshaft is extended at V and connected to the generator shaftby a flexible coupling. 78 A<tca)n Engineering Tlie action of tlie steam, and tlic ijcneral arrangement ofllie…
Steam-engines -- Design and construction · Steam-turbines -- Handbooks, manuals, etc
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
